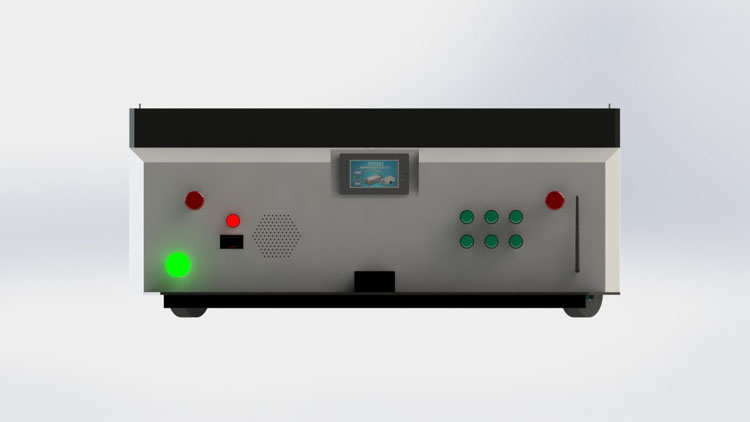

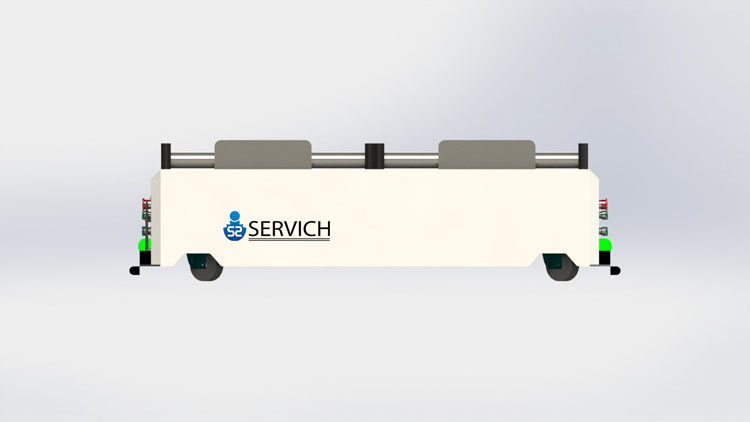

The maximum carrying capacity of the AGV is 500 kg. One-way/two-way walking is optional. The dual-drive structure is adopted. The driving module has a key lifting function. The car has automatic drum, which is connected with the conveying mechanism of upper and lower materials in the factory, and carries out the conveying of goods automatically. During the use of the plant, AGV automatically docks with the plant feeding mechanism at the feeding point, transfers the goods to AGV through the combination of the feeding conveyor and the AGV drum. After that, the AGV trolley automatically runs to the feeding point according to the magnetic strip laid on the ground and the set position, and accurately docks with the factory feeding mechanism, and from the drum and the feeding drum. The conveying mechanism cooperates with the conveying mechanism to transfer the goods to the feeding mechanism so as to realize the automatic loading and unloading and transportation of the goods without human interference in the whole transportation process.
Appearance size：1550mm x 1000mm x 450mm
Guidance modeMagnetic strip guide
Walking speed0-45 m/min (adjustable)
Load capacity500 kg
Minimum turning radius：1000mm
positioning accuracy：±5mm
Security characteristicsLaser obstacle sensor, mechanical anti-collision switch and emergency stop switch triple protection
Communication modeWireless communication (optional)
Driving modeDual Drive Module, Differential Drive
Climbing ability3-5 degrees
Human-computer interaction:Using touch screen human-computer interaction, it is convenient to set parameters.
Working hoursBatteries can work 9 to 12 hours at a time when they are fully charged
Charging timeIt takes 8 to 10 hours for the battery to be fully charged once.
Charging modeManual and automatic charging options
Battery lifeIt can be reused more than 500 times.
warranty policyThe whole machine (excluding batteries and shells) is repaired free of charge for one year, and is guaranteed for life.
