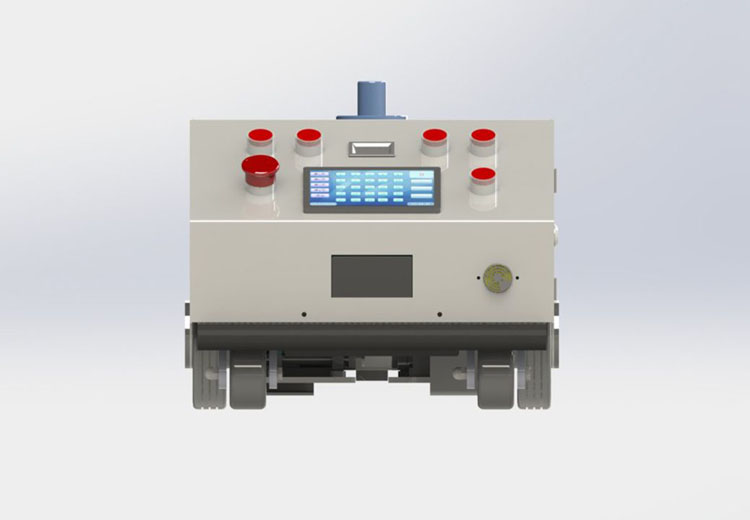

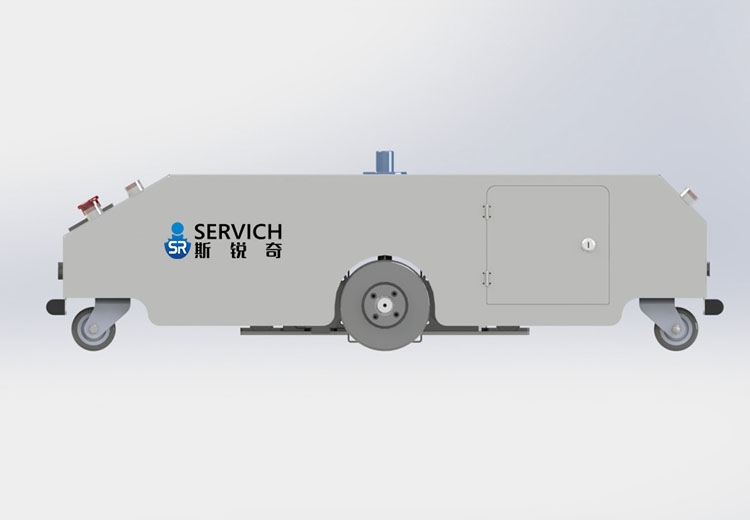

The maximum latent traction capacity of the AGV is 300 kg. One-way/two-way walking is optional. In the process of using in the factory, AGV automatically extends the lifting mechanism at the feeding point and docks with the shelf, then automatically drives to the feeding point according to the magnetic strip laid on the ground and the set position, retracts the lifting mechanism, separates from the shelf, and realizes the transportation of the wheeled shelf without human interference during the whole transportation process. The mode of operation is simple, fast accepted by workers, and there is no conflict with other logistics systems in the use process.
Appearance size：1150mm x 390mm x 300mm
Guidance modeMagnetic strip guide
Walking speed0-45 m/min (adjustable)
Traction capacity300 kg
Minimum turning radius：800mm
positioning accuracy：±10mm
Security characteristicsLaser obstacle sensor, mechanical anti-collision switch and emergency stop switch triple protection
Communication modeWireless communication (optional)
Driving modeDouble-wheel differential drive
Climbing ability3-5 degrees
Human-computer interaction:Using touch screen human-computer interaction, it is convenient to set parameters.
Working hoursBatteries can work 9 to 12 hours at a time when they are fully charged
Charging timeIt takes 6 hours for the battery to be fully charged once.
Charging modeManual and automatic charging options
Battery lifeIt can be reused more than 500 times.
warranty policyThe whole machine (excluding batteries and shells) is repaired free of charge for one year, and is guaranteed for life.
