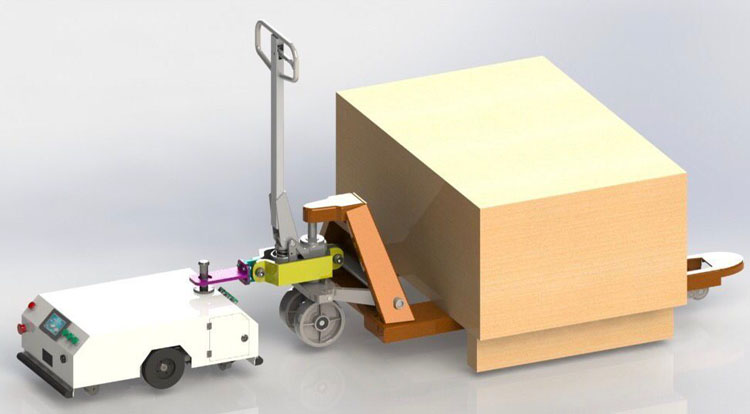

The maximum traction capacity of the AGV is 300 kg. The connection mechanism with the rack/forklift truck can be customized according to the requirements. During the use of the factory, the rack/forklift truck is artificially connected with the traction mechanism of the AGV trolley, and the AGV trolley automatically travels to the cutting point according to the magnetic strip laid on the ground and the set position. The series of vehicles are simple in operation, quickly accepted by the workers, and have no conflict with other logistics systems in the use process.
Appearance size：870mm x 452mm x 270mm
Guidance modeMagnetic strip guide
Walking speed0-45 m/min (adjustable)
Traction capacity300 kg
Minimum turning radius：600mm
positioning accuracy：±10mm
Security characteristicsLaser obstacle sensor, mechanical anti-collision switch and emergency stop switch triple protection
Communication modeWireless communication (optional)
Driving modeDouble-wheel differential drive
Climbing ability3-5 degrees

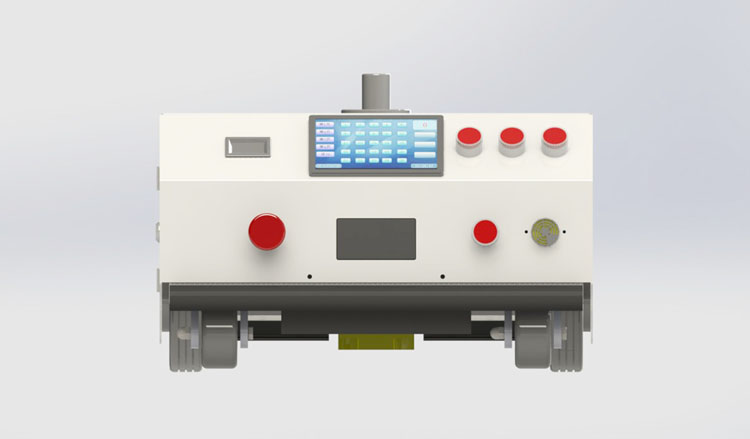

Human-computer interaction:Using touch screen human-computer interaction, it is convenient to set parameters.
Working hoursBatteries can work 9 to 12 hours at a time when they are fully charged
Charging timeIt takes 6 hours for the battery to be fully charged once.
Charging modeManual and automatic charging options
Battery lifeIt can be reused more than 500 times.
warranty policyThe whole machine (excluding batteries and shells) is repaired free of charge for one year, and is guaranteed for life.
