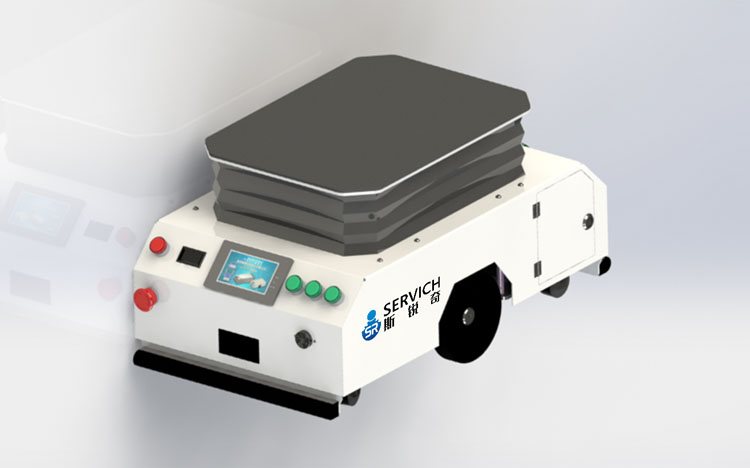

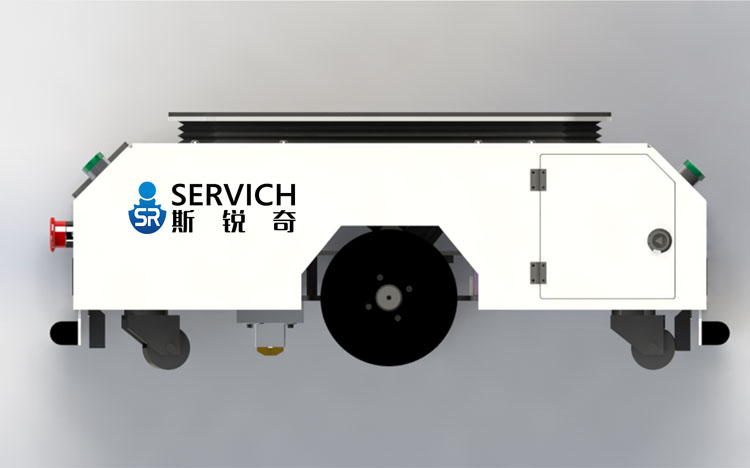

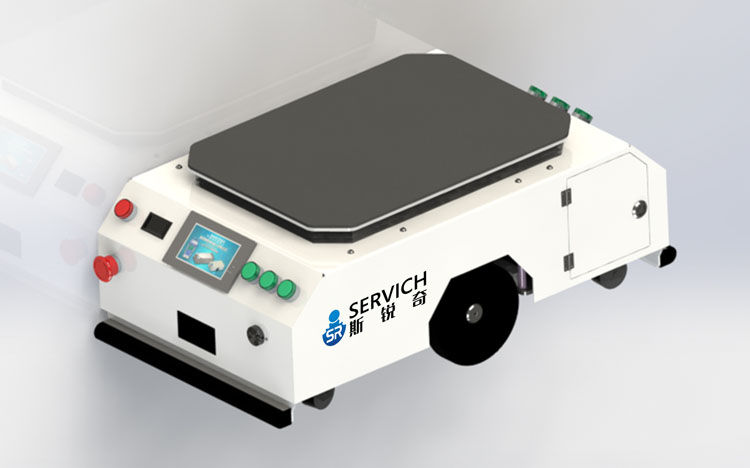

The automatic guided vehicle (AGV) can lift the shelf and other objects off the ground first, and then transport them to the cutting point. The maximum lifting load capacity is 50kg. One-way/two-way walking is optional. During the use of the factory, the AGV trolley lifts the rack off the ground at the feeding point, drives automatically to the feeding point according to the magnetic strip laid on the ground and the set position, then lowers the lifting mechanism, places the rack on the ground, completes the transport of the rack, and the whole transport process needs no human interference. Simple, fast to be accepted by workers, and the use of the process does not conflict with other logistics systems.
Appearance size760mm x 430mm x 280mm (before lifting)/760mm x 430mm x 370mm (after lifting)
Guidance modeMagnetic strip guide
Walking speed0-45 m/min (adjustable)
Load capacity50 kg
Minimum turning radius：400mm
positioning accuracy：±10mm
Security characteristicsLaser obstacle sensor, mechanical anti-collision switch and emergency stop switch triple protection
Communication modeWireless communication (optional)
Driving modeDouble-wheel differential drive
Climbing ability3-5 degrees
Human-computer interaction:Using touch screen human-computer interaction, it is convenient to set parameters.
Working hoursBatteries can work 9 to 12 hours at a time when they are fully charged
Charging timeIt takes 4 hours for the battery to be fully charged once.
Charging modeManual and automatic charging options
Battery lifeIt can be reused more than 500 times.
warranty policyThe whole machine (excluding batteries and shells) is repaired free of charge for one year, and is guaranteed for life.
