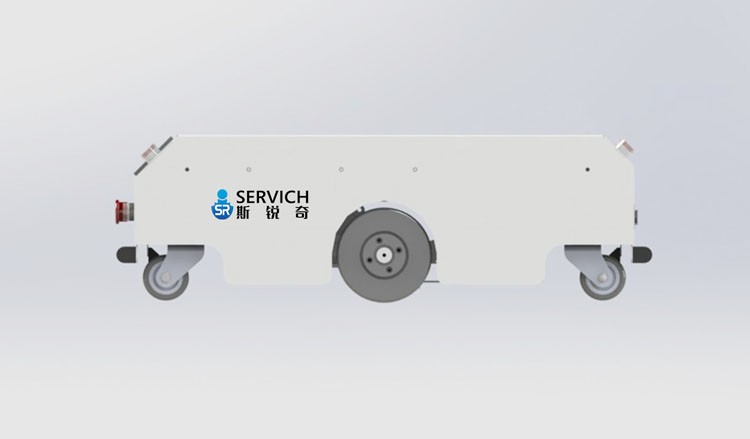

The maximum load capacity of the AGV is 150 kg. The tray can be customized according to the requirements. One-way/two-way walking is optional. In the process of plant use, the material is placed in the pallet by manual or manipulator. The AGV trolley can automatically drive to the cutting point according to the magnetic strip laid on the ground and the set position. The whole transportation process does not need human interference. The series of vehicles are simple in operation, fast accepted by workers, and can be used with them in the process. There is no conflict in his logistics system.
Appearance size：1000mm*494mm*270mm
Guidance modeMagnetic strip guide
Walking speed0-45 m/min (adjustable)
Load capacity150 kg
Minimum turning radius：600mm
positioning accuracy：±10mm
Security characteristicsLaser obstacle sensor, mechanical anti-collision switch and emergency stop switch triple protection
Communication modeWireless communication (optional)
Driving modeDouble-wheel differential drive
Climbing ability3-5 degrees

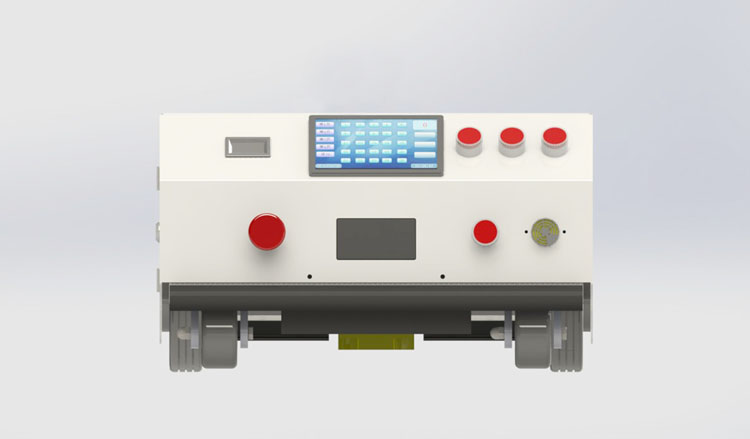

Human-computer interaction:Using touch screen human-computer interaction, it is convenient to set parameters.
Working hoursBatteries can work 9 to 12 hours at a time when they are fully charged
Charging timeIt takes 6 hours for the battery to be fully charged once.
Charging modeManual and automatic charging options
Battery lifeIt can be reused more than 500 times.
warranty policyThe whole machine (excluding batteries and shells) is repaired free of charge for one year, and is guaranteed for life.
