IP65 Dust and waterproof 10.1 inch Android Industrial Tablet
Brand: Dongling Industrial Control
Model: PPC-DL101ANF

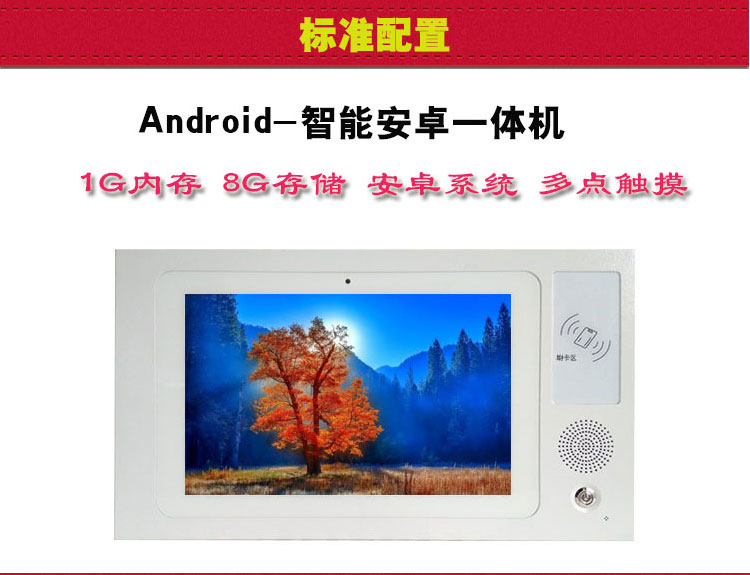

Product Introduction:
This product is Quanzhi A20 processor, an Android 4.2 system computer, 1280 x 800 high resolution, 10 touch capacitive touch-type touch screen, for human-machine interface applications of touch tablet solutions.
On-board 1 plus 8G memory, on-board WiFi, Bluetooth, support for 3G, 4G communication module, can add GPS function, as well as 5 megapixel automatic docking camera face recognition, NFC near-field communication, built-in amplifier horn, panel with metal power switch, the whole machine integrated rich I/O interface, 2 USB interface,2 serial ports, 1 hundred-gigabit Ethernet interface, easy for customers to connect to a variety of I/O devices.
The whole machine power supply is powered by DC 9V-30V wide pressure, effectively controlling the internal heat of the whole machine.
Product features:
1. The front panel is made of aluminum alloy wire, durable and has good earthquake resistance and impact resistance.
2. Installation method can be used embedded, wall- and desktop placement and other ways.
3. Front panel design has brightness adjustment and power start, convenient and comfortable.
4. The whole machine adopts cable-free assembly design, is assembled from double-layer integrated industrial-controlled motherboard overlay, effectively overcome the use of strong earthquakes, high temperatureand and other harsh conditions

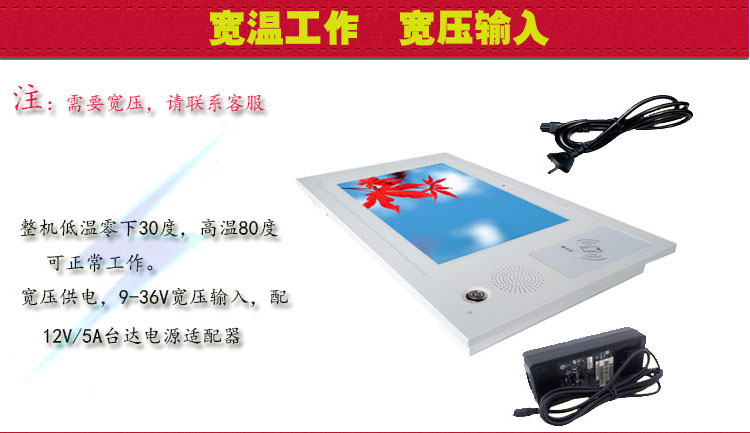

5. Computer power wide pressure between 9V - 30V, factory equipped with 12V5A power adapter.
6. The internal motherboard has a PCI-E interface, can be added 3G module (telecom / Unicom), WIFI module, GPRS module, etc. to achieve computer function upgrade.
7.The weight of the whole machine 2.0kg
Detailed parameters:
Processor
CPU
Quanzhi A20 , Main Frequency 1.2GHz
Memory
DDR3 1G
Store
NAND FLASH 8G (optional) to support one SATA
Network-LAN
1*（RJ-45），10/100 Mbps
NFC 1

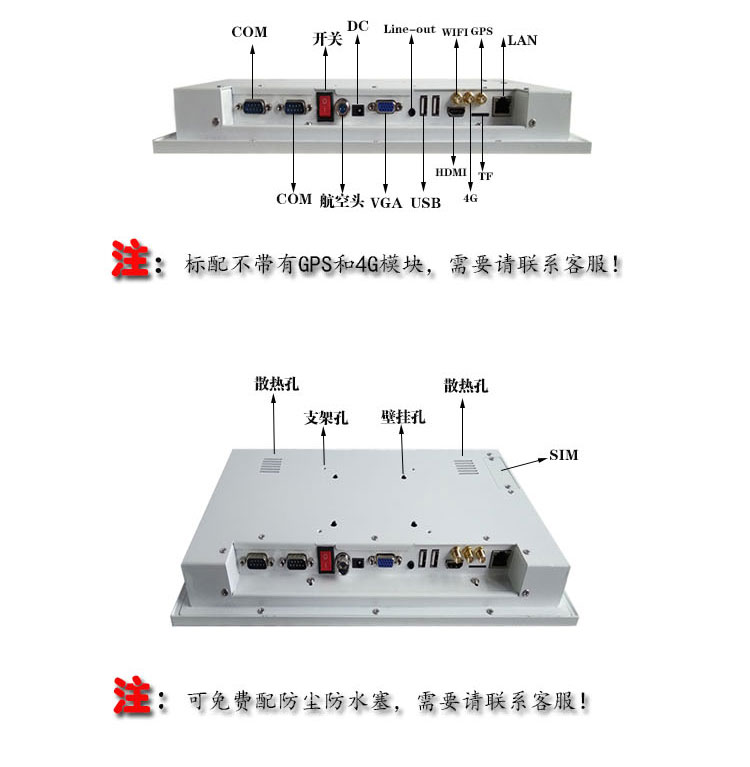

Port/External Devices
2 serial ports
2 rs-232, (Motherboard expands 4 COM ports, of which 2 ordinary serial ports, 2 full-featured serial ports / R232 and UART)
USB interface
External 2-USB, Internal 2-USB Extensible
I/0 interface
1 HDMI port, 1 VGA port
Audio interface
Left and right channel output, built-in dual 4R/20W, 8R/10W amplifier
1 DC port, one switch ON/OFF
1 Mini-PCIE card holder
Weight
Net weight (kg)
2.0kg
Gross weight (kg)
2.5kg
Size
Overall size (length x width x thickness)
350*200*39.6
Mounting dimensions (length x width)
322*178
Power support
DC (DC)12V/5A
Timing switcher
Support
LCD display
Type
10.1 inch color a-Si TFT-LCD
Panel model
G101SN03 v0
Maximum resolution
1280（RGB）*800（SVGA）
Show color
262K(6-bit)
Contrast
500:1 (Typ.) (Transmission)
Visual angle
80/80/65/65 (Typ.) (CR-10) (left/right/top/bottom)
Brightness
400 cd/m2 （Typ.）
Response time
10/25（Typ.）（Tr/Td）(ms)
Pixel spacing
0.264 x 0.264mm (horizontal x vertical)
Backlight type
LED light
Touch screen
Type
Multi-point capacitive touch screen
Resolution
Continuous
Light conduction
80％
Controller
I2C Interface
Durability (Touch)
35 million times
Environmental parameters
Operating temperature
-30℃~80℃
Relative humidity
10 to 95% to 40 degrees C, non-condensation
Impact
10 G peak acceleration (11ms, interval)
Vibration
10 G
Corporate Qualification Certification
CE，FCC，ROHS
