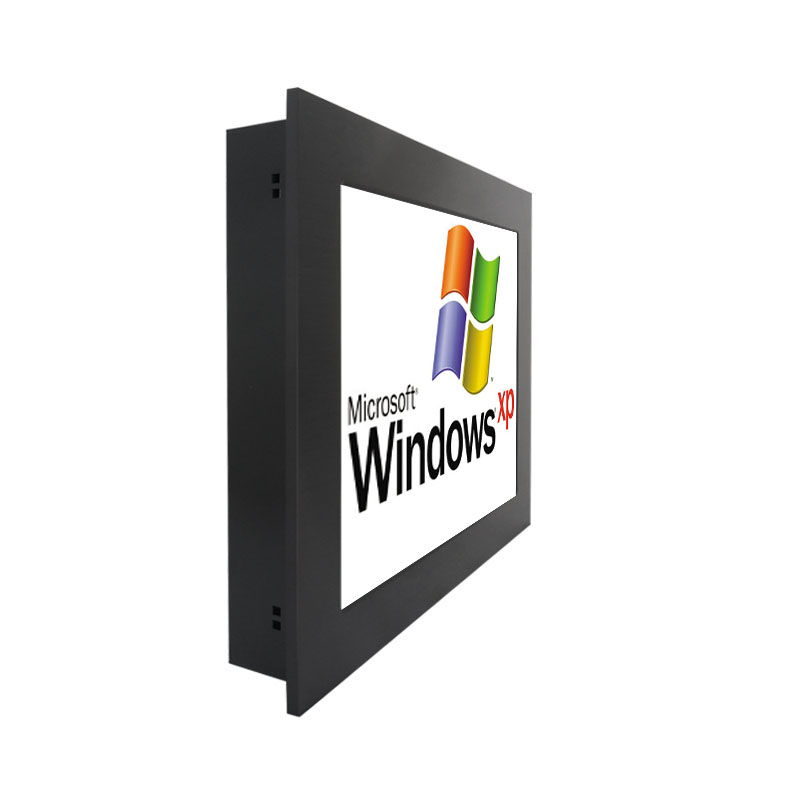

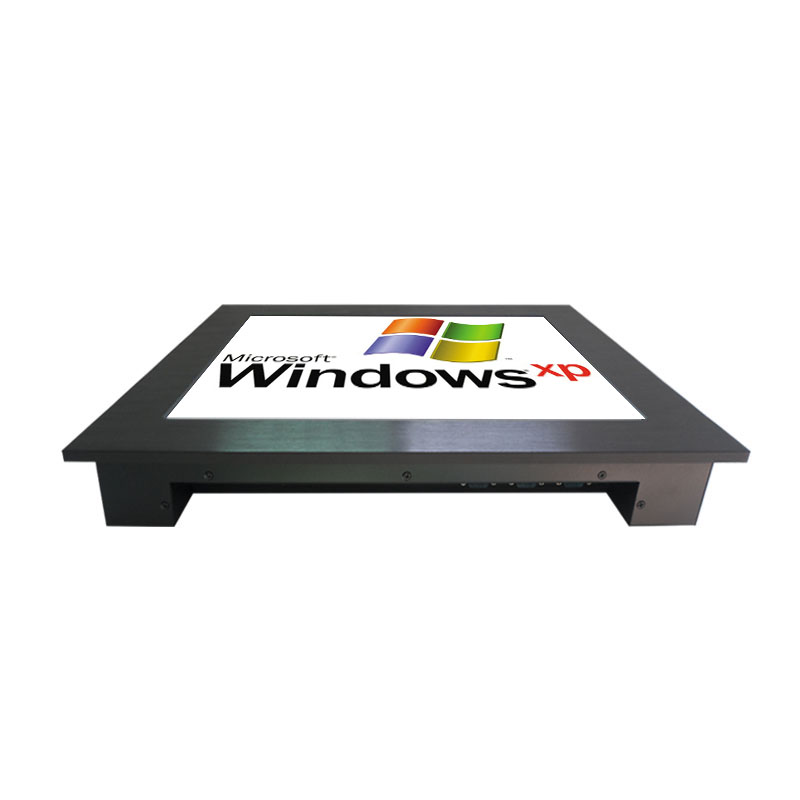

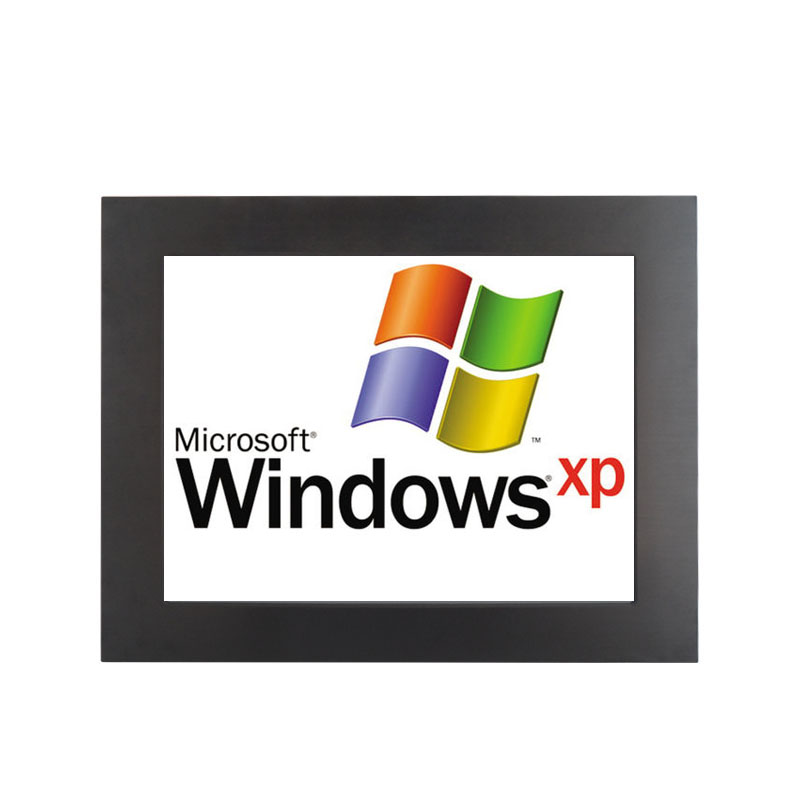

No Fan 17-inch Industrial Tablet Computer Moistureproof
Performance:
1. Continuous operation for 6000 hours without shutdown, good stability, strong anti-interference ability.
2. Small size, light weight and easy to carry.
3. Working temperature: - 40 degrees to 80 degrees, adapt to a variety of harsh environments.
4. Low power consumption: 15W, energy saving and environmental protection.
5. Five-wire resistance touch screen, single touch 35 million times.
6. Support multiple operating systems: Win7, Win8, WinCE, XP, Win10, Linux
7. The interface is abundant, which is convenient for transmission and control.
Detailed parameters:
Processor Intel Ivy Bridge Cyan Dual Core C1037U 1.80GHz
Chipset Intel NM70
Display Chip Integrated Intel HD Graphics Core Display Card
Display output VGA, built-in VGA pin, HDMI, LVDS
Memory 1*SO-DIMM, DDR3 1333 MHz Memory, maximum capacity support 8GB
On-board Realtek ALC662 HD Audio Controller
Network Card Board Realtek RT8111E Gigabit Network Card
Storage 2*SATA II
Extended slot 2*MINI-PCIE(forM-SATA/WIFI)1*SIM
USB 4 * USB 2.0 (postposition) 4 * USB 2.0 (need to be extended)
COM Serial Port 6*COM
Post I/O interface 4*USB2.0 port, 1*VGA port, 1*HDMI port, 1*RJ-45 network card interface, 1*DC port
1 * MIC-IN (Mike), 1 * LINE-OUT (Audio Output)
Working environment - 15 - 60 C; 0% - 95% relative humidity, no condensation
Net weight (kg) 7.5 kg
Gross weight (kg) 8.5 kg
Overall dimensions (length * width * thickness) 450 * 360 * 60.7
Installation dimensions (length * width) 420.4 * 330.4
Software systems support Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux and embedded operating systems, etc.
Power Supply Support DC (DC) 9~30V Wide Voltage
LCD display type 17.0 inch color a-Si TFT-LCD
Panel Model M170EG01VD
Maximum Resolution 1280 (RGB)*1024
Display color 16.2M (8-bit)
Contrast 1000:1 (Typ.)
Visual angle 80/80/80/80 (Typ.) (CR (> 10) (left/right/up/down)
Brightness 350 cd/m2 (Typ.)
Response time 3.5/1.5 (Typ.) (Tr/Td) (ms)
Scanning frequency 60HZ
Backlight type LED lamp
Touch Screen Type 5 Wire Resistance (AMT)
Continuous resolution
80% light conduction
Controller USB Interface
Durability (number of touches) 35 million times
Relative humidity 10-95%@ 40 C, non-condensable
Impulse 10 G peak acceleration (11 ms, interval)
Vibration 10 G
Enterprise Qualification Certification CE, FCC, ROHS
