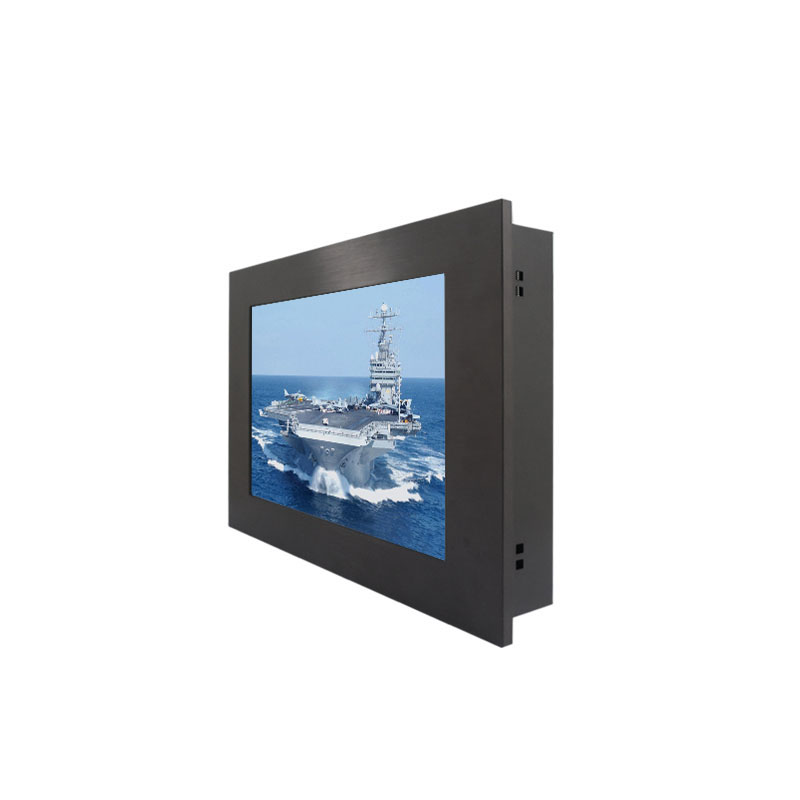

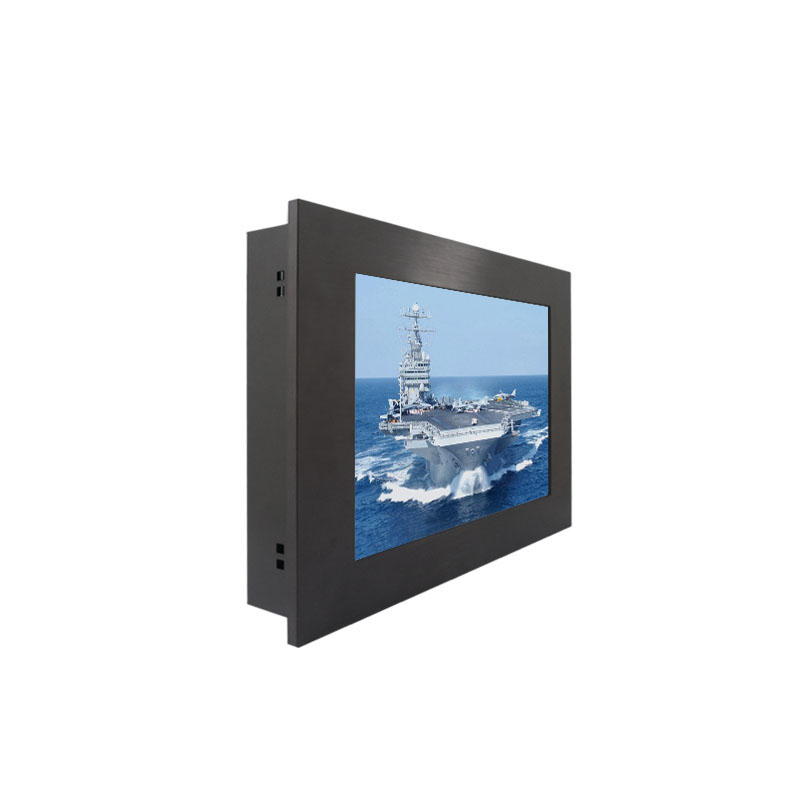

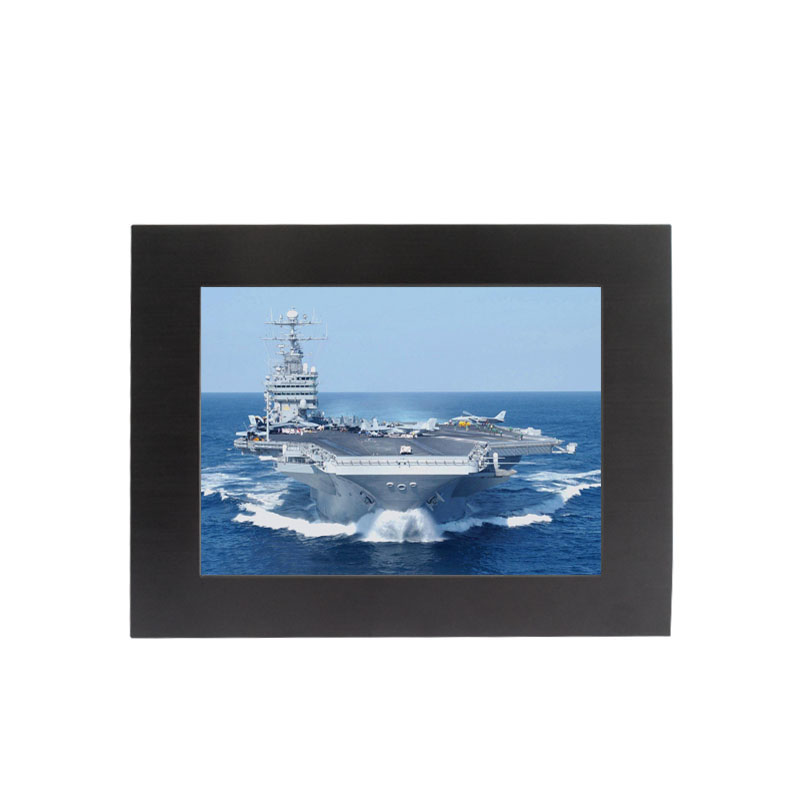

Dongling Industrial Control 12.1-inch Industrial Control Computer
Performance:
1. Continuous operation for 6000 hours without shutdown, good stability, strong anti-interference ability.
2. Small size, light weight and easy to carry.
3. Working temperature: - 40 degrees to 80 degrees, adapt to a variety of harsh environments.
4. Low power consumption: 15W, energy saving and environmental protection.
5. Five-wire resistance touch screen, single touch 35 million times.
6. Support multiple operating systems: Win7, Win8, WinCE, XP, Win10, Linux
7. The interface is abundant, which is convenient for transmission and control.
Detailed parameters:
Processor Intel Ivy Bridge Cyan Dual Core C1037U 1.80GHz
Chipset Intel NM70
Display Chip Integrated Intel HD Graphics Core Display Card
Display output VGA, built-in VGA pin, HDMI, LVDS
Memory 1*SO-DIMM, DDR3 1333 MHz Memory, maximum capacity support 8GB
On-board Realtek ALC662 HD Audio Controller
Network Card Board Realtek RT8111E Gigabit Network Card
Storage 2*SATA II
Extended slot 2*MINI-PCIE(forM-SATA/WIFI)1*SIM
USB 4 * USB 2.0 (postposition) 4 * USB 2.0 (need to be extended)
COM Serial Port 4*COMaaa
Post I/O interface 4*USB2.0 port, 1*VGA port, 1*HDMI port, 1*RJ-45 network card interface, 1*DC 1*MIC-IN (microphone), 1*LINE-OUT (audio output)
Working environment - 40 - 80 C; 0% - 95% relative humidity, no condensation
Net weight (kg) 4.0 kg
Gross weight (kg) 4.5 kg
Overall dimensions (length * width * thickness) 340 * 270 * 55
Installation dimensions (length * width) 341.1 * 174.4
Software systems support Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux and embedded operating systems, etc.
Power Supply Support DC (DC) 9~30V Wide Voltage
LCD display type 12.1 inch color a-Si TFT-LCD
Panel Model AA121XH03
Maximum Resolution 1024 (RGB)*768
Display color 262k/16.77M (6-bit/8-bit)
Contrast 500:1 (Typ.)
Visual angle 70/70/55/75 (Typ.) (CR (> 10) (left/right/up/down)
Brightness 350 cd/m2 (Typ.)
Response time 8.5/3.5 (Typ.) (Tr/Td) (ms)
Scanning frequency 60HZ
Backlight type LED lamp
Touch Screen Type 5 Wire Resistance (AMT)
Continuous resolution
80% light conduction
Controller USB Interface
Durability (number of touches) 36 million times
Working temperature of environmental parameters - 40 C~80 C
Relative humidity 10-95%@ 40 C, non-condensable
Impulse 10 G peak acceleration (11 ms, interval)
Vibration 10 G
Enterprise Qualification Certification CE, FCC, ROHS
