Omnidirectional mobile reconnaissance robot

  • No:STFK084
  • Quantity:

    Product introduction:

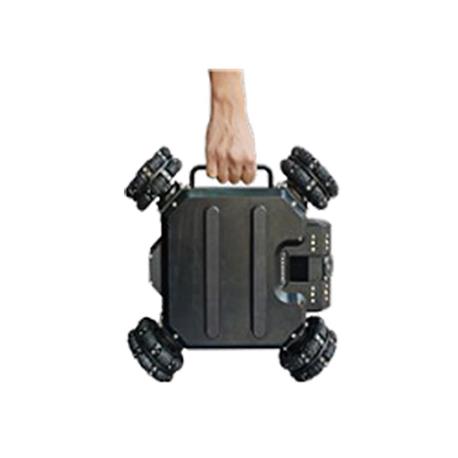

    Omnidirectional mobile reconnaissance robot is a small reconnaissance robot with compact size and flat shape. It is mainly used for reconnaissance operations in narrow and low space (such as car bottom and seat bottom of conference venue). It can also load various sensor modules to detect the target area. The driving wheel of the robot adopts the structure design of McNam wheel, which has the ability of translating motion in any direction, making its movement more flexible and operation more convenient.,NO.STFK084

    Product characteristics:

    1It has flexible movement and adopts the structure design of McNam wheel. It has the ability of translational movement in any direction.

    2Small and flat, more suitable for working in narrow, low space.

    3It has the advantages of high speed and high efficiency, and is especially suitable for fast inspection in large areas.

    4High-definition wide-angle camera and elevation platform are used.

    Product applications:

    1Vehicle chassis inspection.

    2Check the bottom of large containers, shelves and containers.

    3Check the bottom of tables and chairs in conference venues.

    4Examination of other narrow and low spaces.

    Robot body parameters:

    1Outline size:80*380*120mmNet body weight 7kgSystem power supply:24vWorking hours >2hElectricity display Yes;

    2Camera module:420Line miniatureccdCamera, camera lens: no less than140& Deg; wide-angle lens, lighting system:LED*6High-light lamp;

    3Working temperature:-10+50Temperature, Motion Velocity: Arbitrary Direction (> Arbitrary Direction)0.7m/sStepless speed regulation, rotation60°/s

    4Yuntai pitch:-30°~+90& deg; cloud velocity 60°/sThe ability to surmount obstacles8mmTiny ground undulation, climbing ability <10& deg; gentle slope road.

    Controller parameters:

    1Weight:2.1kgOutline size:302*202*55mmSystem power supply12vDisplay screen:8inch800*600High brightness display screen;

    2Manipulating handle:4Continuous self-recovery joystick, working time >2hElectricity display Yes;
