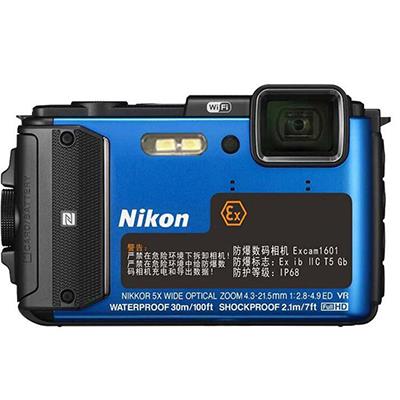

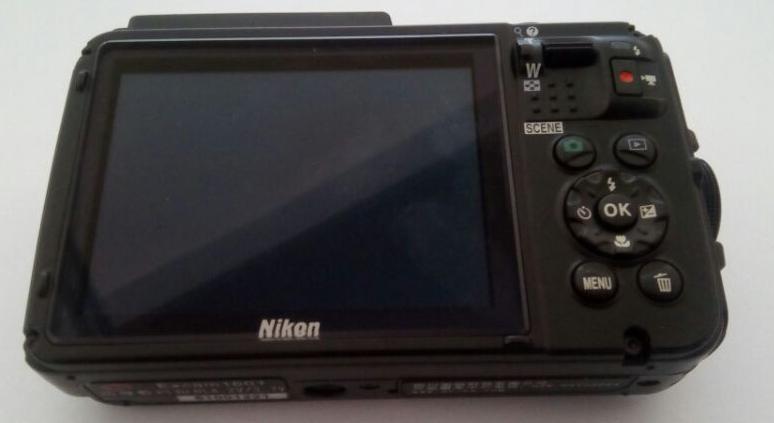

Explosion-proof Camera Excam 1601 Portable Explosion-proof Camera
U use intrinsically safe explosion-proof technology, equipment is safer!
U only weighs 220 g, lighter!
U innovative embedded intrinsically safe LED flash, double the battery life!
U waterproof (30m), shock proof (2.1m), frost proof (- 10 C) dust proof, more comprehensive protection!
U supports WiFi and NFC, and wireless data transmission is more convenient!
Explosion-proof Camera Excam 1601 Portable Explosion-proof CameraMain performance parameters:
L Explosion-proof Mark: Ex IB IIC T5 Gb
1/2.3 inch CMOS image sensor
The total number of pixels is about 16.76 million.
L 5-fold optical zoom and 10-fold dynamic zoom
About 3 inches OLED display
L Waterproof (about 30m) anti-falling (2.1m) anti-freezing (-10 C)
L Built-in Wi-Fi/NFC (short range wireless communication)
L Self-contained innovative embedded intrinsically safe LED flash
L Provides 1080/60i full HD animation shooting, sound distortion
About 20G storage medium (3.6GB memory + 16G SD/SDHC/SDXC memory card, can be replaced)
L It weighs only 220 G.
Explosion-proof Camera Excam 1601 Portable Explosion-proof CameraDetailed technical parameters
type |
Intrinsically safe explosion-proof digital camera |
Ex-mark |
Ex ib IIC T5 Gb |
Total Pixel |
16.76 million |
Number of effective pixels |
16.65 million |
Image Sensor |
6.2*4.7 mm (1/2.3 inch) CMOS (Complementary Metal Oxide Semiconductor Devices) |
Camera lens |
Nickel lens with 5-fold optical zoom |
focal length |
Focus 4.3-21.5 mm (viewing angle equivalent to that of a 24-120 mm lens in 35mm [135] format) |
F value |
f/2.8-4.9 |
Form |
10 groups of 12 pieces (2 ED lens assemblies) |
Digital zoom magnification |
Maximum 4 times (viewing angle equivalent to about 480 mm lens in 35mm [135] format) |
Shock absorption |
Combination of lens displacement and electronic shock absorption |
Dynamic Fuzzy Reduction |
Dynamic Detection (Static Photos) |
Autofocus (AF) |
Contrast Detection of AF |
Focus Range |
[Wide-angle end]: about 50 cm to infinity, [telephoto end]: about 50 cm to infinite-distance mode: about 1 cm to infinite-distance (in wide-angle zoom position) (all distances are measured from the center of the front surface of the lens) |
Focus area selection |
Face priority, manual (99 focusing areas), center, object tracking, target search AF |
Display |
7.5 cm (about 3 inches), about 921,000 dots, OLED display with anti-reflection coating and five levels of brightness adjustment |
Picture coverage (shooting mode) |
About 98% horizontally and 98% vertically (compared with the actual photograph); about 98% horizontally and 98% vertically (compared with the actual photograph); about 100% horizontally and 100% vertically (compared with the actual photograph). |
storage medium |
About 20G (about 3.6GB of memory + 16G SD/SDHC/SDXC memory card, replaceable) |
file system |
Compatible with DCF, Exif 2.3 |
file format |
Static Photos: JPEG Animation: MOV (Video: H.264/MPEG-4 AVC, Audio: LPCM Stereo) |
Image size (pixels) |
16M (high) 4608*3456*16M 4608*3456*8M 3264*2448*4M 2272*1704*2M 1600*1200*VGA 640*480*480*16:9 12M 4608*2592*1:1 3456*3456 |
ISO Sensitivity (Standard Output Sensitivity) |
ISO 125 - 1600 * ISO 3200, 6400 (available in automatic mode) |
metering |
Matrix photometry, central focus photometry (when digital zoom is less than 2 times), point photometry (when digital zoom is 2 times or larger) |
Exposure control |
Programmed automatic exposure and exposure compensation (- 2.0 to + 2.0 EV, step size 1/3 EV) |
shutter |
Mechanical and CMOS electronic shutters |
speed |
* 1/1500 - 1 second * 1/4000 second (maximum speed in high-speed continuous shooting) * 4 seconds (fireworks show scene mode) |
aperture |
Electronically controlled preset aperture (-1 AV) and ND filter (-2 AV) selection |
Range |
3 (f/2.8, f/4.1, f/8.2 [wide angle end]) |
Selfie |
You can choose 10 seconds or 2 seconds. |
Flash Range (about) (ISO Sensitivity: Automation) |
[Wide Angle End]: 0.5-5.2 m [Telephoto End]: 0.5-4.5 M |
Flash control |
TTL Automatic Flash Band Monitor Pre-Flash |
Interface |
Miniature USB interface (do not use USB connectors other than UC-E21), high-speed USB |
USB interface |
Support for direct printing (PICBridge) |
HDMI Output Interface |
HDMI Micro Interface (Type D) |
Wi-Fi (Wireless Local Area Network) Standard |
IEEE 802.11b/g/n (Standard Wireless Local Area Network Protocol) |
Scope (intuitive) |
About 10m |
Operational frequency (actual measured value) |
IEEE 802.11b:5Mbps IEEE 802.11g:17Mbps IEEE 802.11n:17Mbps |
security |
OPEN/WPA2 |
access protocol |
Infrastructure |
Supported languages |
Arabic, Bangladesh, Bulgarian, Chinese (simplified and traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Maladian, Norwegian, Persian, Polish, Portuguese (Europe and Brazil), Romanian, Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese |
Power Supply |
800 mAh intrinsically safe lithium-ion battery |
Charging time |
About 2 hours and 20 minutes |
Tripod Connection Hole |
1/4 (ISO 1222) |
Size (width * height * thickness) |
About 110.4 * 66.0 * 26.8 mm (excluding protrusions) |
weight |
About 217g (including batteries and SD memory cards) |
temperature |
10 & deg; C - +40 & deg; C (land) 0 & deg; C - 40 & deg; C (underwater) |
humidity |
85% or less (no dew) |
waterproof |
GB4208-2008 Protection Level 8 (IPX8), capable of taking images at the deepest depth of 30m underwater for about 60 minutes (third-party inspection institutions qualified) |
dustproof |
GB4208-2008 Protection Level 6 (IP6X) (Third Party Inspection Institutions Qualified) |
Quakeproof |
According to the test method prescribed by MIL-STD-810F METHOD 516.5-SHOCK, the drop height is about 2.1 meters (the third party testing institution is qualified) |
Provide accessories |
An intrinsically safe lithium-ion battery, AC adapter, USB cable, camera belt |
