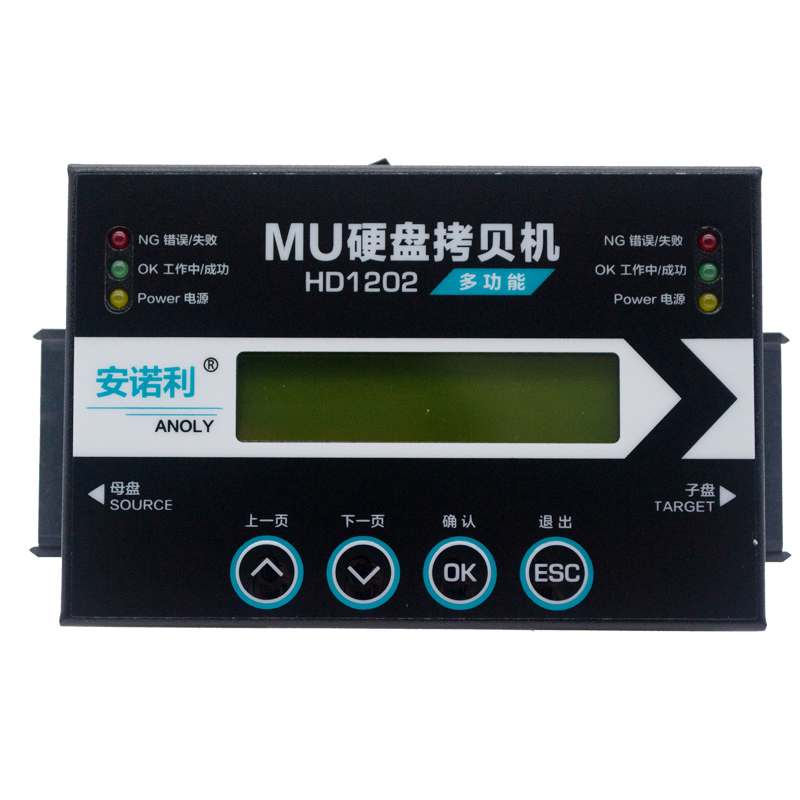

Taiwan MU Professional Hard Disk Copier Offline Duplicating One Drag One Video Quick Copier HD1202

  • No:HD1202
  • Quantity:
    Product Name: Industrial SATA + MSATA + M.2 (SATA) Trinity Hard Disk Copier

    Product model: MU1200

    Support interface: support 2.5 inch, 3.5 inch SATA hard disk, SSD, MSATA, NGFF and other interfaces

    Product color: black

    Product Functions: Quick Copy/Full Copy/Effective Partition Copy/Percentage Copy, Quick Elimination/Complete Elimination/DOD Elimination

    Number of copies: 1 drag 11

    Copy speed: 7.2 GB per minute

    Product Advantages: Copy Encrypted/Hidden Data (Automatic Decryption, Automatic Encryption)



    Product features:

    Really copable data area, without cloning, greatly improve the copy speed;

    Supports 7.2GB high-speed copy per minute (actual speed is related to the field test environment);

    Hidden data can be copied, that is, the format that the computer cannot copy.

    Support 2.5 "/3.5", SATA& MSATA hard disk and SSD, and M.2 (SATA);

    Clear signal instructions (yellow light: read, green light: complete, red light: failure);

    Automatic power-off system to avoid hard disk damaged by live plug-in;

    Independent power switch can be used without waiting.

    Fast copy support: FAT, NTFS, Linux (ext2, ext3, ext4);

    DOD erasure, in line with the U. S. Department of Defense data deletion specifications;

    It can display the number of bad blocks in the master disk.

    Ignore bad blocks (in machine system settings, you can set the allowable value of bad blocks to infinite)

    Support operating systems Windows 2000/XP/Vista/7/8/8.1/10, Mac 10.3 or later, Linux

    Power supply support: 100-240V 50-60Hz


    Comments in Editor's Notes:
    MU1200 is an industrial high-speed hard disk copier batch replicator. It operates entirely on its own operating system. It can complete its work independently without connecting to the computer or purchasing additional software. It makes the operation more simple and reduces the problem of compatibility after software installation. The whole copy process is displayed by LED indicator lamp and LCD display screen, accompanied by sound prompt, which greatly facilitates the user's monitoring of the data backup process.

    Operational steps
    1. After power is switched on, the source disk is connected to the left interface of the copying machine, and the target disk is connected to the right interface (2-12).

    2. On the copy machine, select the "1. Copy" function option directly and press it to start the copy.

    3. After the copy is finished, pull out the hard disk directly.

    Common problem:

    1. Will it destroy my original master plate?
    Answer: The master port of the copying machine adopts read-only design. It only reads the data of the master, does not write to the master, and the master will not be tampered with or damaged.

    2. Does the original data in the target disk need to be formatted or cleared?
    Answer: As long as we confirm that the source is correct, the data in the target disk need not be formatted or cleared, and can be copied directly on the copy machine. The copy opportunity automatically covers the original data in the target disk.

    3. How do you know the copy is completed?
    Answer: The copier is equipped with a work indicator or a sound of "beep" when the copy is completed. The green light flashes indicating that the work is in progress, the work is often completed, the red light indicates that the copy is abnormal, and the yellow light indicates that the power is on.

    4. Small master, large target disk can be copied?
    Answer: It can be copied. If the same capacity as the master is recommended on the industrial computer, some old industrial computers can't recognize the large capacity disk. If the target disk is larger than the master disk, the capacity of the target disk will become the same as that of the master disk after the copy is completed. For example, the master disk is 4 GB, the target disk is 16 GB, and the copy is completed. After that, the target disk will be changed to 4GB (the extra space will be displayed as unallocated area, which can be restored by partitioning the unallocated area once on My Computer-Disk Management).

    5. Can you copy a large master and a small target?
    Answer: It depends on the specific situation of the master. If the data partition of the master is arranged at the front end and the real data size does not exceed the actual capacity of the target disk, it can be copied, otherwise it can not be copied.
