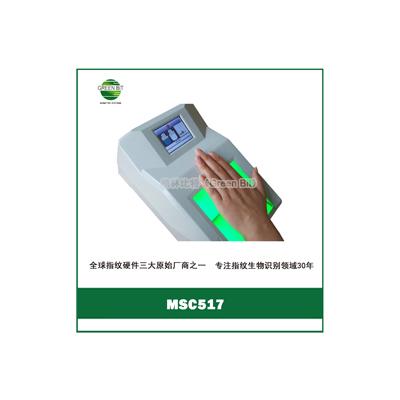

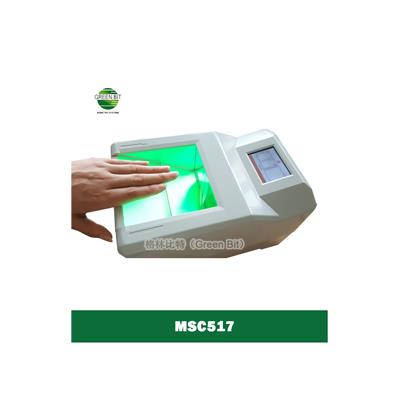

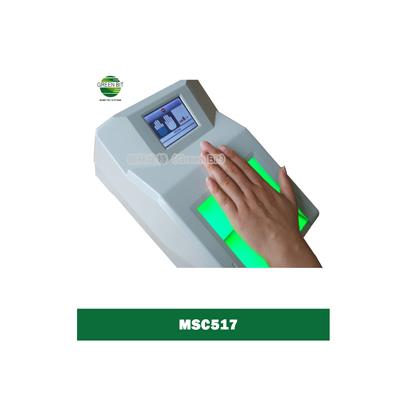

MSC517 realizes that only one acquisition window can collect all types of fingerprints: 10 fingerprints, rolling fingerprints, palmprints of both hands and side palmprints. The resolution of the acquisition image is 500 dpi. At the same time, the top of the fuselage is equipped with a 3.2 & quot; (horizontal) color LCD touch screen, through which operators can easily control the acquisition process without looking at the computer screen.
It is designed with low power consumption and does not need external power supply (at this time, the color LCD screen does not work). It can be placed in the personnel information acquisition room and used as a mobile workstation outdoors only by connecting with the computer through a USB cable.
technical parameter
Effective acquisition window | Palmprint acquisition area 4.6 "x4.6", rolling fingerprint acquisition area 1.6 "x1.6" 1.28 "x1.28", four fingerprint acquisition area 3.2 "x3.0" |
image quality | Compliance with IAFIS Image Quality Specification Appendix F and Appendix P (Main Situation/Supplementary Pattern) |
USB interface | 2.0 (Data transmission and power supply) |
user interface | 3.2 inch full color LCD touch screen |
Power Supply | 5V@800mA |
Compliance with standards | ANSI/NIST ITL-1-2007 ANSI/NIST ITL-1-2000 CJIS-RS-0010(V7) GA/T625-2010 GA/T626-2010 GA/T864-2010 GA/T865-2010 GA/T866-2010 |
image compression | FBI-certified WSQ compression format; JPEG and JPEG2000 formats with larger compression ratio |
Supported Operating System | 32-bit and 64-bit Windows XP, Vista, Windows 7, 8, 8.1 and 10 operating systems 32-bit and 64-bit Linux Ubuntu and Fedora operating systems Android System |
temperature | Working Temperature: 5-40 Storage Temperature: -20-80 |
humidity | 10-75% non-condensable state |
weight | 4kg |
size | 298x182x191 (high) mm |
Authentication | FEI IAFIS-IQS Annex F (500dpi), China GA Certification, FBI |
Optional Accessories | The pedal switch, metal container and cleaning bag can be selected according to the user's needs. |
Features of Software Development Package
Image optimization
1. Automatic removal of halo effect; 2. Automatic removal of duplicates; 3. Keep high-quality image acquisition free from the influence of dry and wet fingers; 4. Green Bit image quality inspection technology to ensure good quality of fingerprint and palmprint image acquisition;
& middot; image processing
1. Fully support the processing of 500 DPI fingerprint and palmprint images; 2. Automatically collect all types of fingerprints and palmprints in less than 2 seconds; 3. Automatic fingerprint segmentation; 4. NISTIR7151 quality inspection; 5. Automatically check the order of fingerprint collection; 6. Automatically detect the slight movement of finger in the process of flat fingerprint collection; 7. Rolling. In the process of fingerprint acquisition, the distortion area of the acquisition object is automatically detected; 8. The automatic detection of the invalid acquisition image of fingerprints and palmprints; 9. The automatic detection of the missing acquisition image of fingerprints and palmprints; 10. The detection of the wrong acquisition object (finger is placed when collecting palmprints and half palmprints); 11. The automatic detection of 2, 4 and half palmprints; In the process of collecting half palm and side palm, the sequence errors of left and right hand are detected automatically. 12. In the process of rolling fingerprint and palmprint collecting, the position of collecting results is corrected.
Data format & amp; output
1. Clipping of captured images; 2. Marking of fingerprint distortion or missing parts; 3. AN2K recording and output; 4. WSQ, JPEG, JPEG2000 compression format; 5. RAW format image output.
