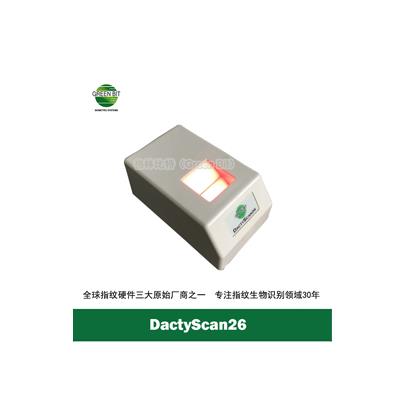

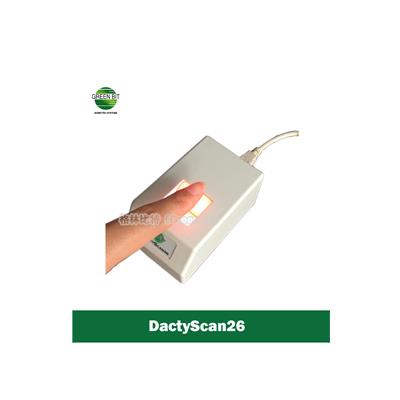

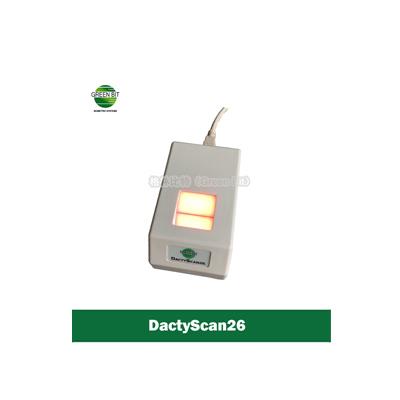

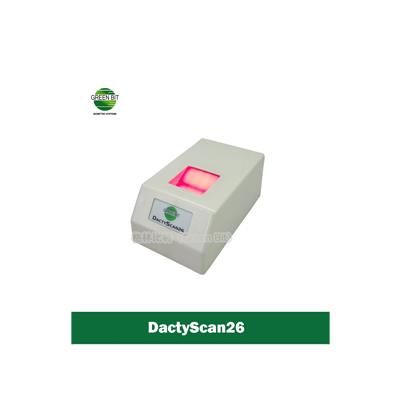

DactyScan26 is a lightweight 1 inch * 1 inch fingerprint collector on the market. It can be widely used in citizenship identification, electronic identity document issuance, entry and exit management and other related applications of government agencies.
DactyScan26 is a very light single finger fingerprint scanner, which meets international quality standards and has a wide range of applications. Because of its small size and low power consumption, it has good mobility and portability.
technical parameter
Effective acquisition window | 1.0”x1.0”（25.4x25.4mm），500dpi+/-1In line withCJIS-RS-0010(V7) |
image quality | accord withIAFISImage quality specification appendixF（FAP45）、BSIandFBI-PIVRequirement |
USBInterface | 2.0 |
image compression | afterFBICertifiedWSQCompression format; can achieve greater compression ratioJPEGandJPEG2000format |
Supported Operating System | 32Bit sum64BitWindows XP，Vista，Windows7，8and8.1operating system 32Bit sum64BitLinux Ubuntu andFedoraoperating system |
temperature | Working temperature:0℃—50℃ Storage temperature:-20℃—60℃ |
humidity | 10—90% Non-condensable state |
weight | 130g |
size | 59x98x40mm |
Authentication | CE、FCCAuthentication |
SDKfunction
- Automatic acquisition
Sense the position of the finger and automatically collect the image to achieve the quality standard. The image quality threshold can be used in the system.SDKSetting up;
- Elimination of potential fingerprints
Eliminate potential fingerprint traces left by previous collection;
- Eliminate background dirt
Ensure that the collected images remain clean, clear and high contrast.
- Automatic image clipping
According to the application requirements, the size of fingerprint image can be tailored.
- Automatic image rotation
According to the application requirements, adjust the rotating fingerprint image.
