1. Product introduction:

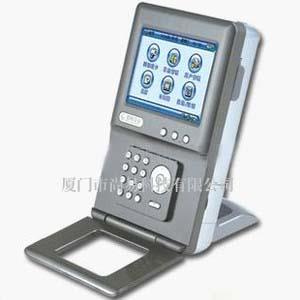

The off-line GTICR200A is a special reading device for off-line use of identity cards, which is compact and generous in appearance. It is the first device in all products that can be handheld, portable and display full color photos of ID cards. It has a powerful 32-bit embedded operating system. It can develop various application software on the basis of user's needs and expand related applications. It can read, display and query the information of the second generation resident identity card in real time. It can exchange data with the database of population information system and other databases through its own network interface to further verify the information. The equipment fully meets the national standard of desktop equipment for the second generation resident identity card, and has high reliability of card reading, with a reading distance of up to 50mm. Background applications can be expanded.
GTICR200 can also be used online with PC through serial port.
The equipment is easy to operate, with large capacity batteries, easy to carry, use and expand. It can be flexibly used in public security, banking, hotels, post offices, securities, insurance, telecommunications, Internet cafes, civil affairs and other industries to verify, collect and inquire document information.
2. Equipment parameters:
Parameter Indicators
Environmental Requirements Atmospheric Pressure 86 KPa-110 KPa
Operating temperature is 0 ~50 +.
Relative humidity less than 90% RH
Storage and transportation temperatures - 40 ~60
Electrical Characteristic Power Supply Voltage 5V
Working current less than 450 mA
Two 800 mAh lithium batteries
Radio Frequency Characteristic Main Carrier Frequency 13.56 MHz
Surface Field Intensity <7.5A/m(rms)
Card Reading Distance (> 5cm)
Communication interface RS232115200BPS
Physical characteristics Appearance size (length * width * height) 180 * 110 * 37mm
Weight 0.8Kg
Display characteristics 3.5 inch TFT liquid crystal, 260,000 color, 320*240 pixels
Storage features 64Mflash, 64Msdram
Optional accessories large capacity SD card, CDMA module
