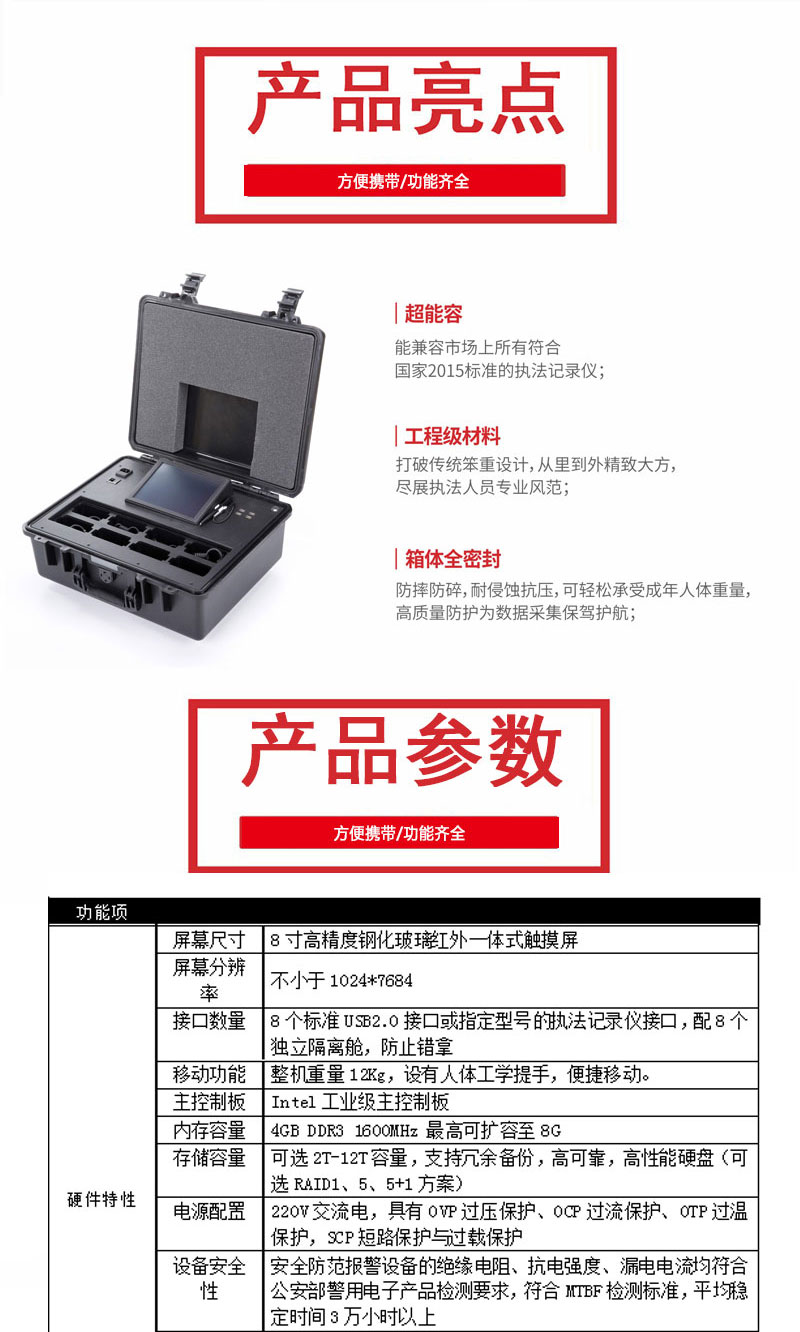

Product highlights
Product parameters
| Functional items | Detailed description | |
|
Hardware characteristics | Screen size | 8-inch High Precision Tempered Glass Infrared Integral Touch Screen |
| Screen resolution | No less than 1024*7684 | |
| Number of interfaces | Eight standard USB2.0 interfaces or designated type of law enforcement recorder interfaces, with eight separate compartments, to prevent mistake | |
| Mobile function | The whole machine weighs 12Kg and is equipped with ergonomic handles for easy movement. | |
| Main Control Board | Intel Industrial Master Control Board | |
| Memory capacity | The maximum capacity of 4 GB DDR3 1600 MHz can be expanded to 8 G | |
| storage capacity | Optional 2T-12T capacity, support redundant backup, high reliability, high performance hard disk (RAID 1, 5, 5+1 option) | |
| Power Configuration | 220V AC, with OVP over-voltage protection, OCP over-current protection, OTP over-temperature protection, SCP short circuit protection and overload protection | |
| Equipment Safety | The insulation resistance, resistance strength and leakage current of the safety alarm equipment meet the requirements of the Ministry of Public Security for the detection of police electronic products, and meet the MTBF detection standard. The average stability time is more than 30,000 hours. | |

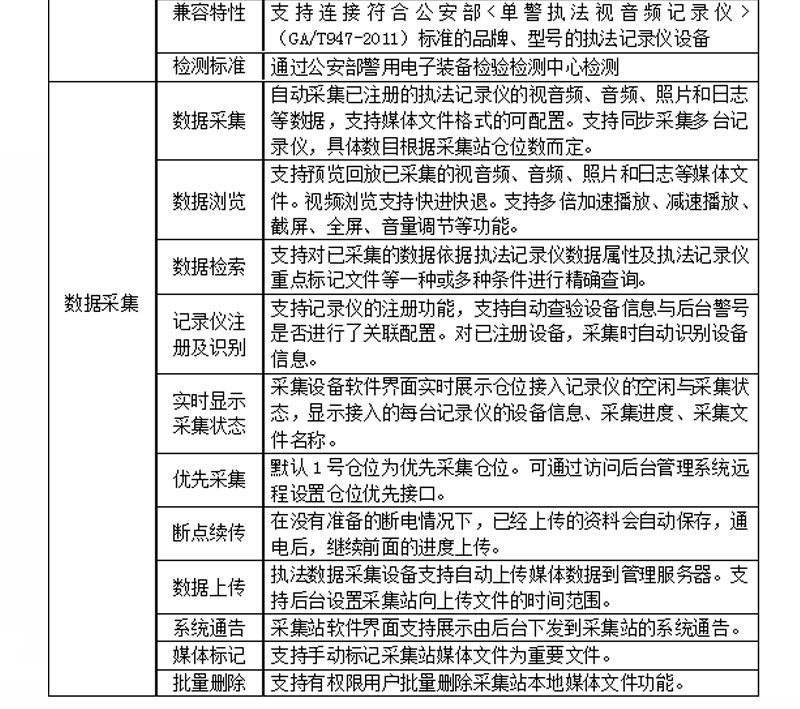

| Compatibility features | Supporting the connection of brand and model of law enforcement recorder equipment that conforms to the standards of Ministry of Public Security less than single police law enforcement video and audio recorder greater than (GA/T947-2011) | |
| Testing criteria | Testing through the Police Electronic Equipment Inspection and Testing Center of the Ministry of Public Security | |
|
data acquisition | data acquisition | Automatically collect the video, audio, photo and log data of the registered law enforcement recorder to support the configurability of the media file format. Supporting synchronous acquisition of multiple recorders.The specific number is based on the acquisition station.Warehouse spaceAnd decide。 |
| Data browsing | Supports preview and playback of collected audio, video, photo and log media files. Video browsing supports fast forward and fast backward. Supporting multiple accelerated playback, decelerated playback, screenshots,Full screen, volume adjustment, etc.Function. | |
| data retrieval | Supports precise query of collected data according to one or more conditions such as data attribute of law enforcement recorder and key marking files of law enforcement recorder. | |
| Register and Recognition of Recorder | It supports the registration function of recorder and automatic checking whether the equipment information is connected with the background alarm number. For registered equipment, the equipment information is automatically identified when collecting. | |
| Real-time display of acquisition status | The software interface of the acquisition equipment shows the idle and acquisition status of the storage access recorder in real time, and displays the equipment information of each recorder.Acquisition Progress and Name of Acquisition Documents。 | |
| Priority acquisition | The default No. 1 position is the preferred acquisition position. The warehouse priority interface can be set remotely by accessing the background management system. | |
| Continuous transmission of breakpoints | In the case of unprepared power failure, the uploaded data will be automatically saved, and after power on, continue to upload the previous progress. | |
| Data upload | Law enforcement data acquisition equipment supports automatic media data to management server. Support setting up the time range of uploading files from the collection station in the background. | |
| System Notice | Acquisition stationSoftware Interface SupportDisplay system announcements sent from the background to the acquisition station. | |
| Media Marking | Support manual marking media files as important documents. | |
| Batch deletion | Support the function of batch deletion of local media files by authorized users. | |
| Batch export | It supports the function of batch exporting local media files from acquisition stations by authorized users. | |
| data storage | SupportDocuments are stored in catalogues according to classification and hierarchy, and in time as a hierarchical storage. | |
| Automatic deletion of data | When the collection settings disk capacity is full, the principle of automatic circular deletion of data beyond the storage period is deleted, and the key files are not deleted. | |
| Automatic Cleaning Recorder | Supports deleting recorder data according to user-defined storage data scales.In order to avoid frequent explanation and training to customers, the default clearance percentage of records is set to 100%, that is, all data in the clearance recorder is cleared by default after the acquisition is completed. | |
| Disk capacity status display and warning function of acquisition equipment | The support interface shows the total storage capacity of the disk in the collection station and the function of the used capacity. It supports voice alarm when the available capacity of the disk is insufficient, and can manually set the percentage value of the disk capacity for early warning. | |
| Authority Management | Support user hierarchical privilege management. Supports hierarchical management of users of acquisition stations through data management platform.Supports permission management switch to control whether to control the rights of the login, which is turned off by default. | |
| Automatic upgrade | The software of the acquisition station can be upgraded automatically through the data management platform of the recorder, and the USB can be upgraded automatically. | |
| Automatic Charging | Supports the law enforcement data acquisition equipment to charge the law enforcement recorder automatically and display the charging status, and supports charging multiple law enforcement recorders at the same time. | |
| Automatic Timing | Support law enforcement data acquisition equipment to automatically correct the time of access law enforcement recorder. | |
| Voice Announcements | When the recorder is connected to the acquisition equipment, the number or name of the policeman bound by the voice broadcasting recorder can be configured and the acquisition status can be broadcasted. | |
| System Settings | SupportAcquisition Station LocalIP settings; supports uploadingServerIP SettingsAnd administrator password settings, automatic lock screen time settings.SupportRecorderwithinData clearanceSet upAnd the percentage setting of disk warning capacity. | |
| Journal | Supporting Viewing Collection StationFile upload server log records. | |
| backups | Law enforcement data acquisition equipment supports redundant backup function. When a disk fails or is pulled out, it does not affect the normal writing of data, and the stored data should not be lost. | |
| Timing backup of data | Support the function of collecting device configuration file and database file backup regularly. | |
| Fault alarm | When the network connection of the acquisition equipment is abnormal, alarm sounds are emitted, and the interface shows that the network connection is different.Chang.In the vicinity of alarm lights, when alarming, support alarm text prompts: such as network failure, power failure, file server failure, etc. | |
| Automatic System Backup and Restore | When the collection station equipment starts up, the data self-checking program is automatically started, and the data is available.according toIt is necessary to set up the corresponding backup state and data recovery state to ensure the security of data backup and recovery. | |
| Voice Control Management | The voice of the operating system can be turned off and turned on by the mute switch, so as to avoid frequent failures of the acquisition station and alarming people late at night. | |
| Multicenter management | Supporting this levelDepartments andData synchronization management of direct superior departments or cross-superior departments. | |
