Handheld Personal Certification Verification Terminal
Product Name:Police workHandheld Personal Certification Verification Terminal
Product type:AK-RZ-Y
Handheld Personal Certificate Verification Terminal, which is based on Android platform with personnel information collection, storage and comparison functions, will collect personnel (face and fingerprint) information and resident identity card chip information for 1:1 identity verification, will collect personnel information and pre-import fingerprints into the device. Face database information for 1:N offline identity verification, or through4The G/wifi communication mode is connected with the larger personnel information base in the back end to verify the identity of the network. The comparison results are returned to the terminal to confirm the verification results.

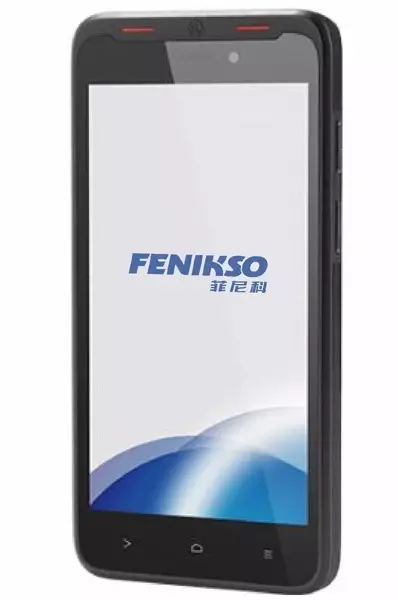

Product Appearance
Product function
1, 1:1 Identity Verification Function
The information in the ID card (text, fingerprint and face) is 1:1 compared with the fingerprint and face information collected on the spot, so as to achieve the identity verification function of the ID card.
2. The function of information collection and local comparison of resident identity card
Built-in resident identity card reader can automatically read the information in the document. When the person being collected does not carry the ID card, he can enter the ID number, name and other identity information manually through the keyboard.
3. The function of plane fingerprint collection and local comparison
Built-in capacitance fingerprint acquisition module to achieve the function of plane fingerprint acquisition. Users compare the collected plane fingerprints with the fingerprint database imported into the terminal.
4. Facial Information Acquisition and Local Comparison Function
Built-in high-definition camera module, users can collect face images through the camera. The collected face images are compared with the face database imported into the terminal.
5. GPS positioning function
Support GPS positioning function, users can get the current location.
6、4G/3G Wireless Communication Function
Support4G/The 3G wireless communication function can interact with the background center.
7. Data acquisition and remote comparison function
Collection of documents, faces, fingerprint information through WIFI or4G/The 3G module connects with the larger back-end system (such as resident database, floating population database, online escape database, drug addict database, etc.), realizes the function of networking comparison, and returns the results of comparison to the equipment side for verification.
Product Specification
content |
Specification indicators |
operating system |
Android4.4 |
CPU |
Octanuclear 1.7GHz |
Memory |
RAM2G,ROM 32G |
Network System |
GSM/WCDMA Other Requirements for Customization |
screen |
5.7 inch QHD (1280*720) |
Camera |
Rear camera: 13 million pixels, autofocus, flash; Front Camera: 2 Megapixels |
Battery capacity |
4500mAh |
Interface |
mircoUSB |
Location |
GPS + Beidou |
Fingerprint Acquisition Module |
Capacitance, image size (256X360 pixels) |
Resident ID Card Reading Module |
Accord with Ministry of Public Security Standard GA/T450-2003 |
Face Local Comparison Speed |
80,000/s (characteristic bit characteristics) |
Fingerprint Local Comparison Speed |
16,000 threads per second (feature alignment feature) |
Face Verification Accuracy |
≥98.9% |
Fingerprint Verification Accuracy |
≥99.9% |
Equipment dimensions |
228X99.5X27（mm） |
Application scenarios
Certificate-using units (such as banks, social security, Internet cafes, exams, driving schools, etc.) can quickly and accurately identify the identity of personal cards by checking their faces and fingerprints, effectively prevent the occurrence of illegal and criminal acts such as fraudulent use of other people's identity cards and alteration of resident identity cards.
