Product introduction:
With the development of UAV technology, UAV has already been seen everywhere: clear image transmission, low cost, convenient purchase, heavy load, simple operation is its outstanding characteristics. But if UAV is in the hands of terrorists, it will pose a serious threat and challenge to the security of all countries. From Europe came nightmares: terrorists using drones to carry bombs, viruses, biological and chemical weapons against justice. Unmanned aerial vehicles (UAVs) are used to investigate and challenge the legitimate state law enforcement agencies and military security. Drug criminals use UAVs to transport drugs, etc. Therefore, effective defense and control of UAVs are the difficulties faced by all countries. The digital UAV jammer developed by Tang Chengxing will provide complete and effective defense and interception for UAV. It is widely used in military garrisons, government garrisons, aviation, warships, ports and other important places.
NO.STWRJ011WOLVESFLEETSolution, this oneST-FLY-PB01High power digital technology jammer implements the most effective and reliable radio frequency interference technology, and is equipped with a fully integrated broadband interference system, which can work simultaneously and independently.
ST-FLY-PB01This fully portable multi-module digital technology jammer provides a robust pull-rod box design with less volume and high mobility and reliability. There are five interference modules installed in the equipment, and the interference frequency is more than one.10Five interference frequencies, maximumRFThe output power is250~300W。
ST-FLY-PB01,The device is easy to operate, simple to link the selected antenna and the required frequency band..All control panels andLEDThe displays are all installed. The device can use built-in batteries.AC DC and DCDCThe design of power supply equipment conforms to international quality standards and military requirements. Based on our design, our company's high-quality standards can ensure the high-quality operation and long-life use of the equipment. We can further customize our system client-specified solutions for both military and civilian areas to provide the best unique solutions.
ST-FLY-PB01Characteristics:
1High-power portable jammer field programming and adjustable power frequency band, separate module design, to facilitate follow-up service maintenance and upgrading, accessible5A separate module that can be overwritten10A different frequency band;
2Each module hasLEDDisplay Frequency, Display Frequency and Power, Total Power, etc.250-300Watts Using control panel operation, it can be opened by wired control./Design of portable pull rod box for each module;
3Built-in battery,ACDC orDCPower supply, external connectionLEDDisplay can display battery information, input design with external standby batteries, connect external batteries, convenient and timely replacement of batteries;
4Interference module:5individual/Interference frequency band:15paragraph/Interference frequency:900-5850/Interference source:DDSDigital Integrated Design/Modular design;
5Each jammer module and antenna can be used as a single jamming signal, and all modules can be controlled singly.
6Host size:56.5 x 46 x 27cm; Host weight:38kg/Working temperature:-35°C~+70°C。
Applications:
Military Stations, Military Security Forces, Special Police Forces, Ports, Fleets, Fleets, Airports, Borders, etc. All types of law enforcement officers benefit greatly from deploying any of these best portable radio frequency interference solutions. They can enforce the law more effectively and avoid the opportunity for criminals to use UAVs.
Technical parameters:
Based on its modular design and configuration, our digital jammer is easy to operate, upgrade, repair and adapt to use. Digital jammer module can be easily and quickly replaced, just as we change cell phone batteries everyday. Different interference bands can be operated immediately and at any time according to customer's requirements.
Main Promotion Scheme(Frequency points can be customized according to customer requirements)
| Interference frequency |
Application equipment |
output power (Watt) |
| 900-930 |
Unmanned aerial vehicle remote control and image transmission |
50 |
| 1520-1580 |
GPSL1 |
50 |
| 2400-2485 |
2.4GhzUnmanned aerial vehicle remote control and image transmission |
80 |
| 2400-2485 |
2.4GhzUnmanned aerial vehicle remote control and image transmission |
80 |
| 5725-5850 |
5.8GhzUnmanned aerial vehicle remote control and image transmission |
20 |
1Operating frequency band: UAV navigation, control, data transmission frequency, total output power of each scheme 280W, Maximum accessibility300WInterference module:5The interference frequency band:15Paragraph;
2Heat Dissipation System: Intelligent Heat Dissipation System, Protection System: Standing Wave Ratio Protection, Over-voltage and Current Protection, Interference Source:DDS Digital integration technology, antenna type: high gain omnidirectional antenna, number of antennas ：5；
3Long-distance control: the operation control of the whole equipment, the switch of each frequency band;LEDDisplay battery operation status, built-in battery ：35AH/24-28VDC。
4Modular design: Each jammer module and antenna can be used as a single interference signal, and all modules can be controlled separately.
5Host size:56.5 x 46 x 27cmHost weight:38kgWorking temperature:-35°C~+70°CWorking humidity:Up to 80%。
Modular features:
Each module has three monitoring lights, which can clearly show the power supply status, normal operation and reflection status of each module. Each module is set withLEDThe display can display the working frequency, power and other technical parameters of each module. Each module is designed232Interface, and equipped withUSBConnecting wires can be connected to the computer to adjust the frequency and power, and check the working status.
Remote control:
ST-FLY-PB01Cable remote control is used to facilitate the operator to manage each module under any circumstances. The remote control can also display the internal and external battery power and the working state of the built-in power supply.

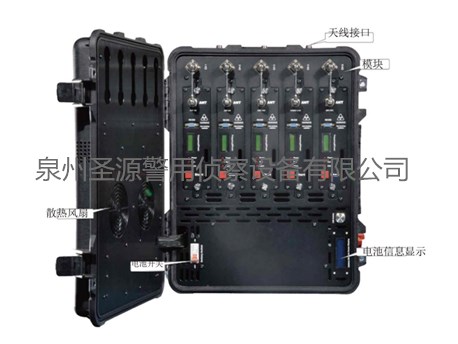

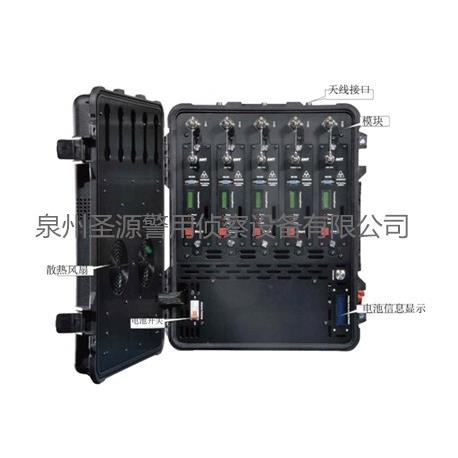

The structure and working principle of the equipment are as follows:

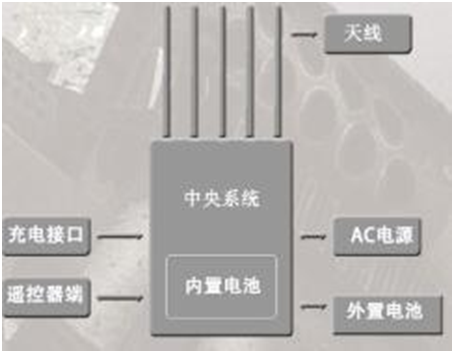

System diagram

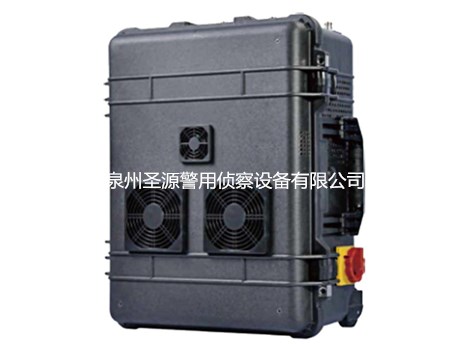

Host
ST-FLY-PB01 Digital jamming technology is used to cover the jamming frequency band comprehensively, which makes it more effective jamming and larger shielding coverage. Containers with U.S. military specifications, shock and fall proof.
Modular design facilitates follow-up services. Damaged modules can be easily replaced and removed. At the same time, it will not interfere with the normal work of other modules.

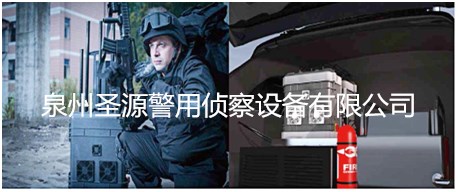

The greatest application features are:
ST-FLY-PB01The most remarkable feature in application is that it can be used not only in portable mode, but also in vehicle. It can be operated by two sets at the same time.ST-FLY-PB01Full-frequency jamming machine is used in the vehicle, and the vehicle antenna can be configured according to the customer's requirements.

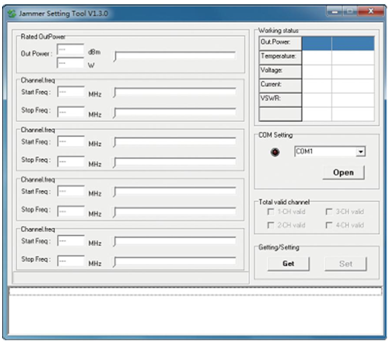

ModularDDSSoftware Operating Interface:
The interface of software design is very simple. As long as the operator can drag the mouse, the working frequency and output power of the module can be set smoothly. Each module can set up four frequency outputs.

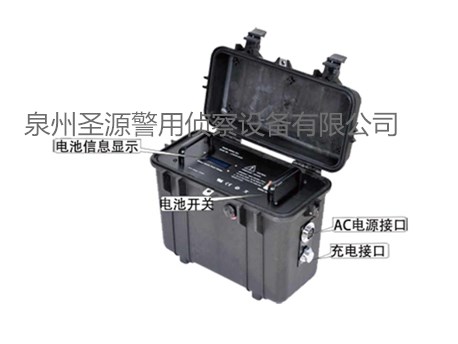

Battery technical specifications:
In order to ensure the safe use of the equipment, lithium iron phosphate batteries are used. It is currently the safest battery for large capacity batteries in the world.

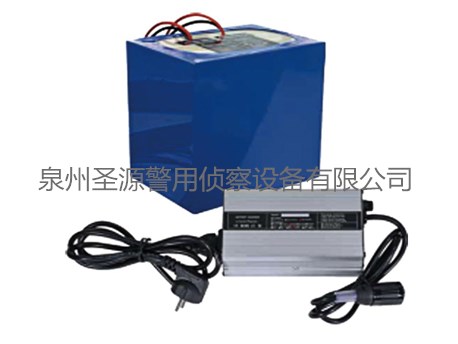

Built-in battery parameters
1Voltage ：27VInternal resistance:24mOmega, size:260mm(L)* 125mm*(W)168mm(H)；
2Charging ：0.2CDischarge:1CWeight:7Kg；
3Standard charger: input:100-230AC,output:29.2V/5A 。

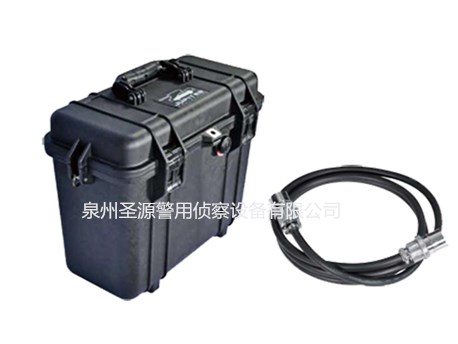

External battery parameters
1Voltage ：27VSize:430(L)*244mm*(W)*341mm(H)；
2Charging ，0.2CDischarge ：1CWeight:8.5Kg；
3Standard charger: input:100-230AC,output:29.2V/5A 。
