Scope of application
& Curr is widely used to search for potential fingerprints, footprints, blood marks, fibers and other trace material evidence, especially for criminal footprint search and exploration.
Performance characteristics
& Curr; using the United StatesCREEHigh power imported from originalLEDThe maximum power is as high as 3500Lx.40W,Average service life10Ten thousand hours.
& Curr: The design of polar dimming knob switch can adjust the brightness of light at any time to meet the light needs of any workplace.
& Curr: The output light is flat light with linear uniform distribution, wide search area and 1.2 m long irradiation distance.
& Curr: Clearly show the ground trace, and obtain high contrast evidence image.
& The overall structure design is lightweight and concise. Lightweight aluminium alloy shell structure is adopted, which is resistant to falling and collision, and easy to clean and disinfect.
& Curr; built-in > 2.5 hours continuous lighting rechargeable battery, long life, low self-discharge rate, can also be connected to external power supply lighting.
& Curr; The design of overheating protection device, more reflect the actual combat and professional performance of the product.
technical parameter
Rated voltage:DC12.6V/AC220V
Rated capacity:7800mAh
Light source type:U.S.ACREEOriginal importLED XML-T6*4
Service life:100000hour
White light color temperature:7000K
Shell Material:Aviation Class6061-T6High-grade aluminium alloy
Appearance:PreciseCNCProcessing, Thickening, Anodizing, Dumb Black
size:230*135*705mm
Lens: High Purity Optical Lens
Light type: Flat light, the irradiation distance is over, visible light is not less than or equal to1.2rice
Illumination: (>)3500lx
Switching mode: Polarless dimming/switching (light brightness can be adjusted arbitrarily)
Lighting time:≥2.5h
Charging time:4-6h
Protection Level:IP66
weight:1100g(Containing batteries)

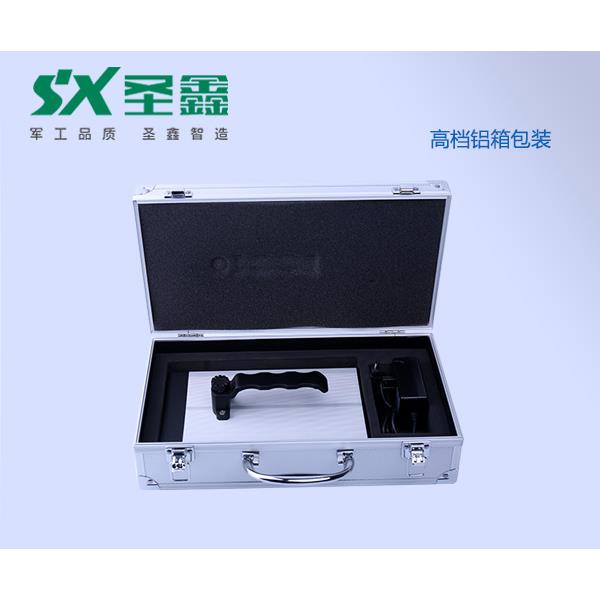

Packing method:High-grade Aluminum Alloy Outer Box

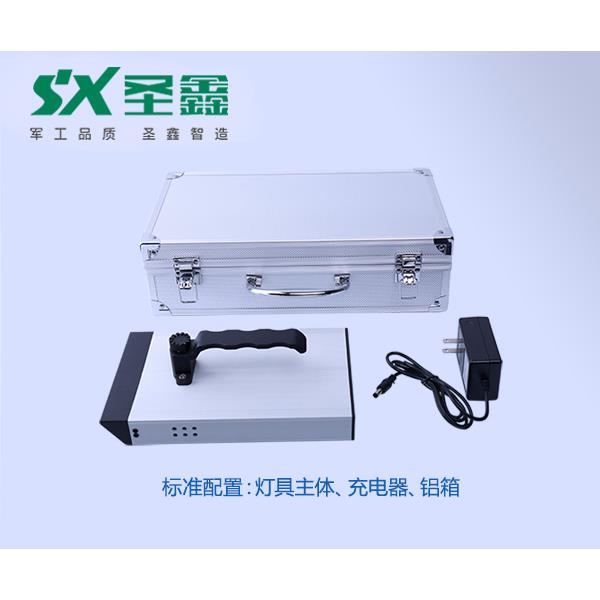

Standard Configuration
Specific lamp 1, built-in rechargeable lithium battery pack 1 group, AC and DC charger 1, instruction 1, certificate 1, aluminum alloy box
Quality Assurance
Implementation of SX-F10 Portable Wide Footprint Exploration Lamp3Annual insurance;3During the year, the company will be responsible for the maintenance (non-human factors) of any faults in the normal use of the products.3In order to obtain high quality products and perfect after-sales service, we choose to buy and recognize Shengxin brand.
