Product characteristics:
& Middot is the first independent defrosting module in China to solve the fogging of camera lens caused by temperature difference in outdoor environment.
& High-quality heating parts are selected in the camera warehouse to make the whole warehouse work together to form an effective anti-fog and fog removal pattern.
& Middot; Yuntai adopts the integrated structure of upper and lower spindles, so that the camera storehouse and infrared storehouse of Yuntai will not bump and dislocate.
& Middot; Yuntai standard equipped with original voltage stabilization module, filters the instantaneous unstable current of vehicles, so that the Yuntai maintains stable state.
Night vision light supplement:
The imported 808nm laser is used to realize synchronous zoom, adjustable angle or automatic adjustment according to the multiple of the camera. The laser spot angle is 1-deg; to 50-deg; the laser 3/5W is optional.
Coaxial HD:
Yuntai supports the general AHD/CVI/TVI coaxial HD core, and also supports the output of coaxial HD VCR. The image is transmitted in real time without any coding and compression.
Product applications:
110 Police Vehicle Mobile Law Enforcement/Fire Emergency Command/120 Emergency Command System/Road Mobile Patrol/Urban Security Law Enforcement/Special Vehicle Mobile Inspection
Technical parameters of products:
Yuntai performance: |
|
Preset pan speed |
100°/S |
Preset tilt speed |
80°/S |
Horizontal Manual Control Speed |
0°—60°/S |
Vertical Manual Control Speed |
0°—40°/S |
Horizontal angle |
360 & deg; infinite rotation |
Vertical angle |
-90°—+90° |
Preset |
256 preset locations and 6 inspection trajectories |
control mode |
RS485, built-in 16 protocols, baud rate from 2400 Bps to 1200 Bps optional |
relative humidity |
Less than 90% |
Protection Level |
IP66 |
working temperature |
-35°C—+55°C |
Power Consumption of Power Supply |
DC10.8V-DC18V |
Impact Resistance Requirements |
≥4G |
Wiper function |
Support |
Installation mode |
Various installation methods can be selected according to the application environment. |
weight |
6kg |

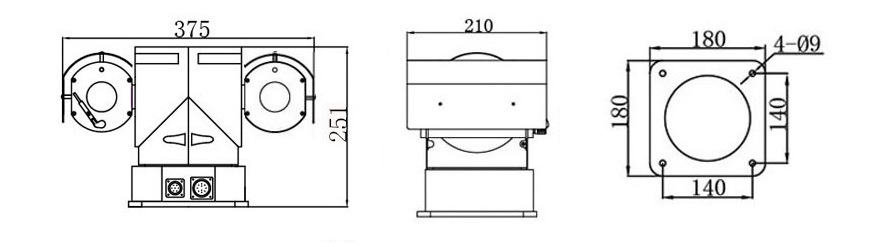

Product Dimension Map: (Unit MM)
