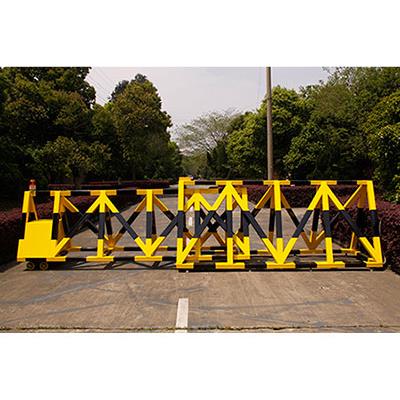

FBQ03 Electric Expansion Refusal Horse
1. Performance characteristics:
This type of electric horse rejection is mainly composed of outer frame components and inner frame components, which are welded by a rectangular steel tube with a specification of 60mm*80mm and a wall thickness of 3mm. The outer frame is fixed on the ground by its own weight while the inner frame is placed in the outer frame and moves back and forth driven by the motor. Electric horse rejection can be used to block roads or set obstacles at the entrance of key units, so that security personnel can guard before and after horse rejection, and strictly control the entry and exit vehicles and personnel. Patent No. 201520168498.2.
2. Main technical parameters:
Outer frame height: 1.3 m
Inner frame height: 1.18 m (excluding warning lights)
External frame width: 1.06 M
Inner frame width: 0.78 M
Full length of horse rejection: 3.5 m
Full length of horse rejection: 6 m
Total weight of rejection horse: 520 kg
Control mode: electric control, remote control.
