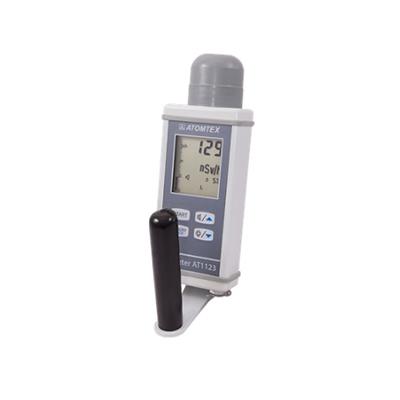

BelarusSpot Supply of ATOMTEX AT1123 X-Ray Radiometer
brief introduction
BelarusThe spot supply of ATOMTEX AT1123 X-ray radiometer can measure the radiation exposure from 30 milliseconds and continuous X-ray and ambient dose equivalent rate and the energy range of gamma-ray with wide pulse duration and short duration. The instrument can detect soft and hard gamma ray sources, beta radiation sources, short-term and pulse radiation and exposure time assessment. The maximum dose rate is automatically saved by the instrument. Up to 100 data values can be saved and uploaded to the computer through data software.
BelarusTechnical parameters for spot supply of ATOMTEX AT1123 X-ray radiometer
* The instrument has four measuring modes: continuous radiation dose rate, short-term radiation dose rate, pulse radiation and searching radiation source.
1. Detecting body plastic scintillator (heavy metal mixture): 30*15 mm
2. Environmental dose equivalent: 10 nSv - 10 Sv
* 3. Environmental dose rate equivalent of continuous radiation: 50 nSv/h-10 Sv/h
* Environmental Dose Rate Equivalent of Short-term Radiation: 5 USv/h-10 Sv/h
* 4. Minimum Pulse Time: 10ns
5. Energy range: 0.015-10 MeV
6.137Cs Energy Response Sensitivity
from 15 keV to 60 keV ±35%
from 60 keV to 3 MeV ±25%
from 3 MeV to 10 MeV ±50%
Sensitivity of 7.137Cs 100 cps/mu Sv H-1
8. Adjoint beta radiation sensitivity: 3-middot; 10-7 μSv/h-1·Bq-1
9. Operation mode setting time: 1 min
10. Continuous operation time
AC or DCNot less than 24 hours
Built-in batteryNot less than 24 hours
11. Operating temperature range: - 30 - +50 C
12. Measurement error of dose and dose rate: & plusmn; 15%
13. Calibration error & plusmn; 5%
14. Compensation error in operating temperature range - plusmn; 10%
15. Relative humidity (+35-deg; C) = 95%
16. Protection level IP54
17. Power requirements:
Built-in battery 6V
alternating current 220V
Direct current 12V
18. Radiation interference standard: CEI/IEC CISPR 22:1997
19. EMC compatibility:
CEI/IEC 61000-4-2:1995
IEC 61000-4-3:1995
20. Weight: 0.9 kg
Size: 233*85*67 mm
