Product Profile:

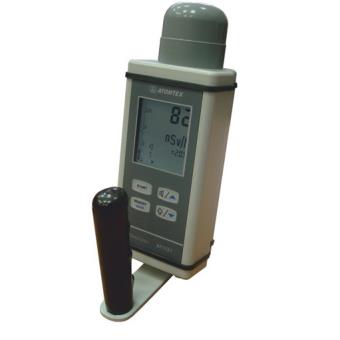

Belarus ATOMTEX AT1121 x, gamma radiation detector can measure environmental dose equivalent and environmental dose rate equivalent of X-ray and gamma-ray
The instrument is simple to operate and easy to carry.
The main function of the detector is to detect the pulse radiation from 10 ns of pulse time.
Short-term radiation with pulse duration from 30 ms and continuous X-ray and gamma radiation with wide range energy and environmental dose rate equivalent
The detector can detect various soft and hard gamma and beta radiation sources.
Pulse and Short-term Radiation with Exposure Time Assessment and Radiation Detection Device for Moving
Any limit within the range can be set by using the keyboard on the instrument.
Automatic storage of maximum dose rate
It can store 100 measurements for a long time in memory and transmit data to a computer at the rate of 300 to 1200 baud.
The tester can have self-checking mode both at turn-on and start-up and during the whole operation, and no reference source is needed because of the stability measurement method of LED.
Product characteristics:
Portable, Multifunctional and Wide Range
Short-term and pulsed radiation (AT1123, AT1123A)
Plastic Scintillator (Heavy Metal Mixture) Tester
Searching for gamma and beta radiators
Exposure time assessment
Built-in LED stabilization system without reference source
Large screen backlight LCD
Remote measurement
Audio and visual alarm when exceeding the limit
Three power supply modes
Operating in Extreme Environment
Product applications:
X-ray diagnostic radiology
Radiation Detection Emergency Events
Atomic Energy Research in Nuclear Industry
X-ray nondestructive testing
INSTRUMENTS AND
Product configuration:
Radiation detector
"0.06-10 MeV" cap (with filter)
Belt, AC adapter, handle, leather case, operation guide
25m remote control line, audio-visual alarm unit (connection line up to 25m long time) (optional)
Computer connection and application software, DC connection (optional)
1.6m telescopic rod and packing box (optional)
Product parameters:
Detecting body | Plastic scintillator (heavy metal mixture), 30*15 mm |
Environmental dose equivalent | 50 nSv - 10 Sv |
Environmental Dose Rate Equivalent of Continuous Radiation | AT1121/AT1123：50 nSv/h - 10 Sv/h |
AT1121A/AT1123A：50 nSv/h - 5 Sv/h | |
Environmental Dose Rate Equivalent of Short-term Radiation | AT1121/AT1123：5μSv/h - 10 Sv/h |
AT1121A/AT1123A：5μSv/h - 10 Sv/h | |
Environmental Dose Rate Equivalent of Pulsed Radiation | AT1121/AT1123:0.1 uv/h-10 Sv/h only applies to AT1123 |
AT1121A/AT1123A:0.1 u Sv/h-5 Sv/h is only applicable to AT1123A | |
Minimum Pulse Time (Dose Rate 1.3 Sv/s) | 10ns |
Minimum Pulse Time (Short-term Radiation) | 30ms |
Energy range | AT1121/AT1123：0.015 –10MeV（15 keV - 10 MeV） |
AT1121A/AT1123A：0.02 –10MeV | |
137Cs Energy Response Sensitivity | |
from 15 keV to 60 keV | ±35% |
from 60 keV to 3 MeV | ±25% |
from 3 MeV to 10 MeV | ±50% |
137Cs sensitivity | 100 cps/μSv h-1 |
Adjoint beta radiation sensitivity | 3 ·10-7 μSv ·h-1·Bq-1 |
Operation mode setting time | 1 min |
Continuous operation time | |
AC or DC | Not less than 24 hours |
Built-in battery | Not less than 12 hours |
Operating temperature range | AT1121/AT1123：-30 - +40℃ |
AT1121A/AT1123A：-30 - +50℃ | |
Measurement error of dose and dose rate | ±15% |
Calibration error | ±5% |
Compensation error in operating temperature range | ±10% |
Relative humidity (+35 & deg; C) | 98 % |
Protection Level | IP54 |
Power requirements | |
Built-in battery | 6V |
alternating current | 220V |
Direct current | 12V |
Radiation interference standard | CEI/IEC CISPR 22:1997 |
EMC Compatibility | CEI/IEC 61000-4-2:1995 |
weight | 0.9 kg |
size | 233*85*67 mm |
| |||||
Model | AT1121/AT1121A | AT1123/AT1123A | |||
radiation | H*（10） | H*（10） | H*（10） | H*（10） | |
X-ray | + | + | + | + | |
Gamma ray | + | + | + | + | |
Bremsstrahlung | + | + | + | + | |
continuity | + | + | + | + | |
Short-term | + | + | + | + | |
pulse | - | - | + | + | |
Beta detection | + | + | + | ||
