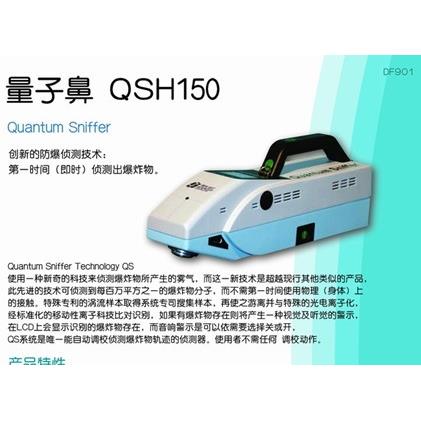

Introduction to the Principles of Quantum Nose Science
The QS-H150 quantum nose uses the latest explosive vapor detection technology that is more sensitive than existing explosive detection technology. This advanced technology detects the presence of trace explosive molecules at the ppt (10-13 g/cm3) level in real time without contact with the detected object. The device uses a unique "cyclone" sample collection system to collect samples, the unique "photoelectric dissocystiading" technology ionizes the sample molecules, and then uses standard ion drift technology to identify the sample; The LCD shows traces of explosives present. The audible alarm can be turned off if needed. Due to the use of "photoelectric dissochemical" technology, the system does not contain radioactive elements, thus eliminating the need to apply for special permission from the National Radiological Management Committee.

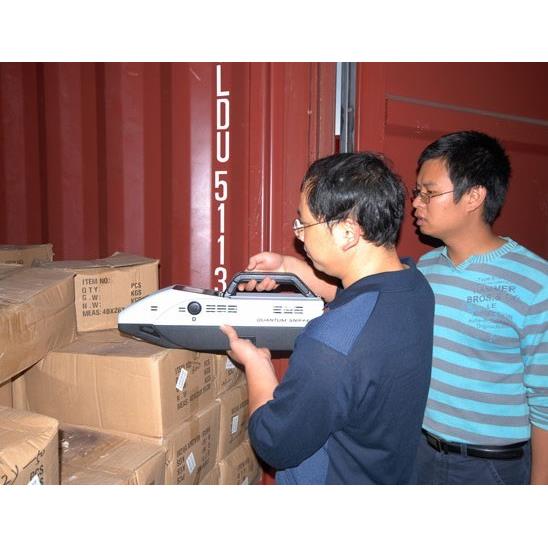

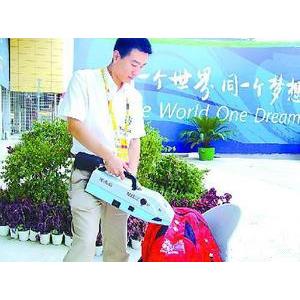

Applications: Air, rail and road public safety checks, customs and border security checks, mail parcel checks
Features of the system:
Unique "cyclone" sample collection system, contactless detection
Real-time detection to determine the location of explosive molecules
Quick analysis with short sampling intervals
System auto-calibration
ppt level accuracy
No consumables required
4-hour rechargeable battery
System automatic fault detection
Technical indicators:
Detector principle: laser ionized ion drift mass spectrometry technology without radioactive source
Sensitivity: ppt magnitude
False positive rate: less than 1%
Analysis time: Real-time analysis (1-5 seconds)
Sample Interval Time: Continuous Sampling
Sampling: Contactless sampling
Sample distance: 1-8 cm
Warm-up time: 15 minutes on
Power: 4-hour rechargeable battery, AC power, 12V DC car power
Alarm mode: LCD display and volume adjustable sound alarm
Detectable types of explosives: Semtex, C4, RDX Cyclone, NC nitrate fiber explosives, PETN season dynamite, EGDN explosives, TNT glycerin explosives, ANFO nitrosamine fuel explosives, TATP explosives, SMOKELESS smoke-free explosives, BLACK POWDER Black Powder and other explosives
System calibration: auto-calibration
Volume: 50 cm (H) X12 cm (W) X19 cm (H)
Weight: 5.4 kg (including 4-hour battery)
