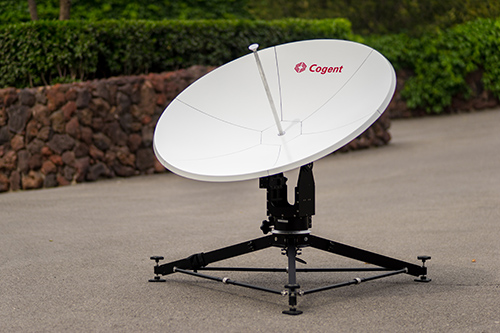

Compatible with the world's mastersStream of Ka-band satellite communications systems such as: European Satellite Tooway System, Inmarsat GX System, ViaSat Excede System, Gilat System, iDirect System, etc.
Antenna structure installation is simple, transport packagingIATA Air Transport Standards
SupportableKu/Ka Dual Band Application
| Electrical performance |
||||
| Type |
Splash feed antenna |
|||
| Reflective surface material |
Carbon fiber |
|||
| Caliber |
1.0Meters |
|||
| Frequency |
Send |
27.5～30.0GHz； |
||
| Receive |
17.7～20.2GHz； |
|||
| Gain |
Send |
47.0+20log(F/28.75GHz) dBi |
||
| Receive |
43.6+20log(F/19.45GHz) dBi |
|||
| Side-lobe performance |
(rec ITU-R S 524-9 and ITU-R S 465-6) G-29-25log when 1-deg; s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s G-8 when 7-deg; ≤ Less than 9.2-deg; G-32-25log when 9.2-deg;≤ Less than 48-deg; G- -10 when 48-deg;≤ θ ≤180° |
|||
| Noise temperature |
5° Elevation 68K 10° Elevation 52K 20° Elevation 43K 40° Elevation 41K |
|||
| In Bobby |
Receive |
≤1.5 |
||
| Send |
≤1.3 |
|||
| Axis ratio |
Receive |
Less than 1.5dB @Axial |
||
| Send |
Less than 1dB @Axial |
|||
| Polarization |
Left-handed, right-handed orthogonal polarization |
|||
| Physical performance |
||||
| How to pack |
Backpack 1 plus Backpack 2 |
|||
| Box size |
Backpack 1 |
60*51*24cm |
13Kg |
|
| Backpack 2 |
67*69*21cm |
13Kg |
||
| Azimuth rotation range |
+/- 90° |
|||
| Pitch rotation range |
10°～90° |
|||
| Environmental indicators |
||||
| Operating temperature |
-35～+55°C |
|||
| Storage temperature |
-40～+80°C |
|||
| Working wind speed |
14m/s |
|||
| Preserving wind speed |
20m/s(Fixed) |
|||
| Working humidity |
0%～100% |
|||
| Working altitude |
5000m |
|||
| Meet the standards |
CE, FCC, RoHS, satellite company standards |
|||
■ Cogent Batt-Pak Portable DC Synthetic Power Supply Unit
■ Body Pelican flight box
