Product Profile:
The 4G single soldier remote (combat) communication system is a portable mobile video surveillance terminal which supports the functions of 4G network transmission, voice intercom, GPS positioning, SD card video recording and so on.
Product characteristics:
1. Wireless Network
Supporting a variety of wireless video transmission modes, you can choose to transmit video and audio signals based on 4G network (EVDO/WCDMA), 4G network, wireless local area network (WIFI) and other data information.
2. Flow Control
Automatic flow control, no excess flow. At the same time, it supports two bitstreams: CIF and D1 simultaneously, and the frame rate and bit rate are adjustable.
3. Coding Technology
Ultra-low bit stream optimized H.264 coding, image quality up to 25 Zheng and D1 standards, within the effective range of the network, can obtain smooth high-quality images.
4. Local display
The device is equipped with a 260,000 color 2.6 inch TFT screen and a user-friendly operation interface. It can display current video, playback local video, system operation, system settings, system information and other pictures.
5. Global Positioning System
The equipment supports built-in GPS or Beidou modules, which can accurately locate the location of the equipment longitude and latitude, and display in the monitoring center.
6. Various Video Recording Methods
Local SD storage (maximum support 64G, trigger video, alarm linkage video, preset time video, etc.) and network storage.
7. Intelligent Power Management
The equipment has built-in large capacity lithium battery, intelligent charging management, real-time power query, low-power intelligent alarm, power saving mode. The equipment can work continuously for more than 6 to 8 hours.
8. Modular Design
It integrates video, voice, data acquisition, wireless network transmission and global positioning system.
9. Two-way Speech Intertalk
The equipment supports two-way voice intercom, and the front-end equipment and the monitoring center can realize voice communication.
10. Various ways of alarming
The equipment is equipped with emergency button to alarm and report the situation to the monitoring center at the first time.
11. Protection Level
IP56 (dustproof, waterproof), 1.5 meters high dropping cement ground trouble-free.
12. Camera configuration:

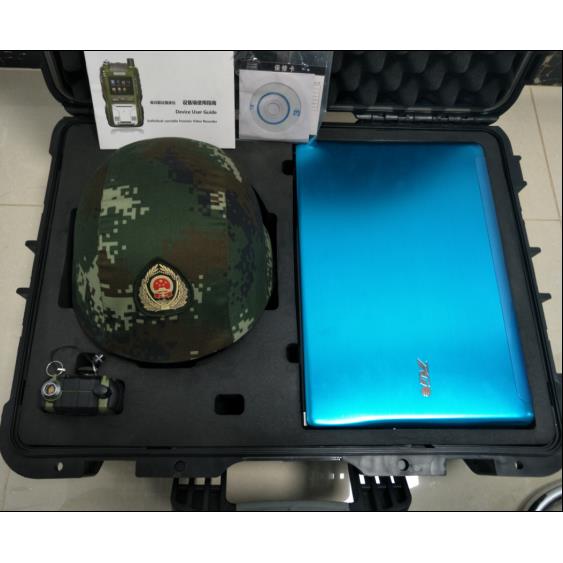

Users can choose various cameras (combat helmet, reconnaissance shoulder pad, button and external DV) according to different environments in order to meet the different application needs of various industries.
13. SDK can be provided to facilitate secondary development and docking.
Waterproof:Can achieve the normal work of storm protection
Weight:410g
Size:132mm*74.1mm*32mm
14, 4G single soldier remote (combat) communication system products have passed the same "Ministry of Public Security Security Security and Police Electronic Product Quality Inspection Center inspection, safety requirements and test methods based on GB16796-2009, inspection based on Q/SHT 002-2014 3G/4G single soldier forensics system".
